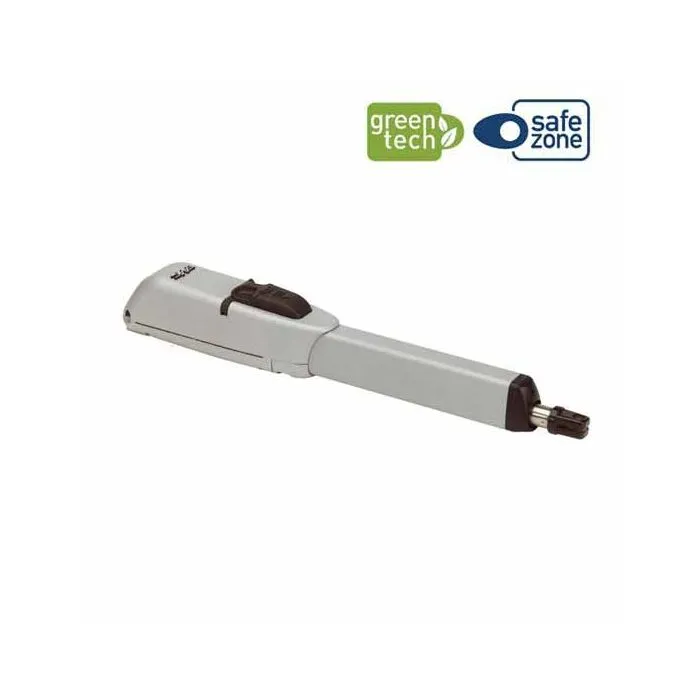

230V 415 Electro-mechanical operator Swing Gate FAAC 104415

Name: 230V 415 Electro-mechanical operator Swing Gate FAAC 104415
Brand: FAAC
SKU: 104415
Price: 345.1 EUR
Availability: OutOfStock

Out of stock

SKU: 104415

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

Electro-mechanical operator for residential swing-leaf gates with single-leaf max length of 3 m (415) and 4 m (415 L).

Available in versions with a 300 mm (max leaf 3 m) and 400 mm (max leaf 4 m) rod stroke.
Available in versions with/without a travel limit device.
Half bodies are coupled with a seal in pressure cast.
Die-cast aluminium body, entirely double-coat painted for longer life.
Manual release device with simplifi ed key-protected activation.
Travel limit devices (if present) for maximum safety, with facility for controlling travel limit stops and slow-down.
Horizontal exit for cables to allow low installation.

The package contains: an electro-mechanical operator, installation accessories, a release key, a thrust capacitor 8 μF 400 V.

Data sheet

Power supply voltage: 230 V ac Power: 300 W Current: 1.3 A Thermal protection: 140 °C Capacitor: 8 μF Thrust: 300 daN Rod stroke: 300 mm Rod extension speed: 1.6 cm/sec Leaf max. length: 3 m* Type and frequency of use at 20 °C: S3-30% Indicative maximum hourly cycles at 20 °C: ~30 Operating ambient temperature: -20 °C to +55 °C Weight of operator: 7.8 Kg Dimensions (L x D x H) in mm: 835 x 105 x 148 Protection class: IP 54 Travel limit microswitches: NO (*) Use of the electric lock is recommended over 2.50 m.(**) Use of the electric lock is recommended over 3.00 m.
