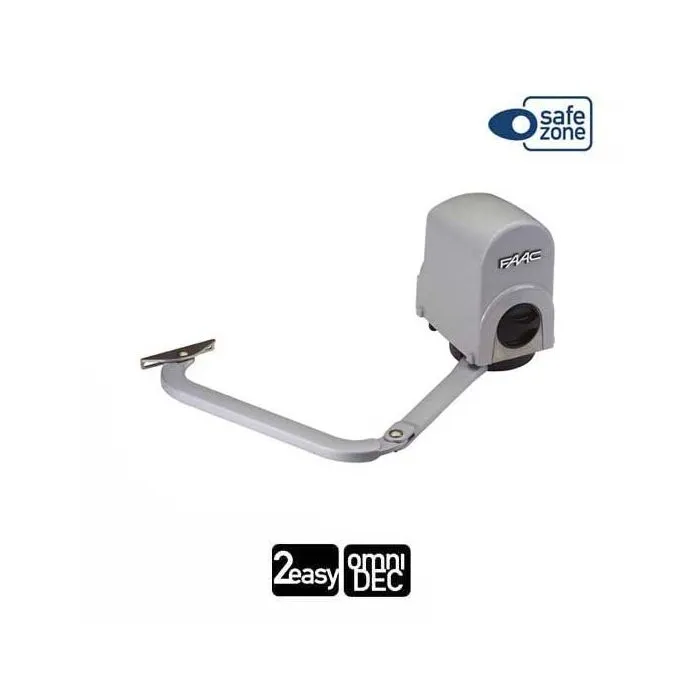

391 E operator with control board and articulated arm FAAC 104576

Name: 391 E operator with control board and articulated arm FAAC 104576
Brand: FAAC
SKU: 104576
Price: 486.04 EUR
Availability: OutOfStock

Out of stock

SKU: 104576

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

Electro-mechanical operator with articulated arm 24V for residential swing-leaf gates with single-leaf max width of 2 m (2.5 m with the electric lock).

Compact, elegant design. Width - the crucial overall dimension - is as little as 185 mm!
Versatile, simple installation. The articulated arm allows high flexibility for the installation dimensions, enabling use also on large pillars.
With the non-reversing operator, there is no need to install electro-mechanical closing devices.
In case of a power cut, the rotation of the (key protected) release device alone, makes it possible to move the gate manually.
Built-in mechanical stops: no need to install opening and closing mechanical stops.
New control unit with anti-crushing device and virtual encoder with reverse function upon detection of obstacle.
Emergency battery to ensure operation in case of powercut (optional).

IMPORTANT: to ensure correct operation, make sure that the distance between the gate hinge and any walls or lateral fencing is greater than 725 mm.

Data sheet

Model: 391 E
Power supply: 230 Vac
Electric motor: 24 Vdc
Absorbed power: 120W
Max. torque: 250 Nm
Max. angular speed: 13° sec
Max. leaf length: 2.5 m*
Max. leaf weight: See graph A**
Use frequency at 20 °C: 1:80
Consecutive cycles at 20 °C: 30 cycles/day
Protection class: IP 44
Operating ambient temperature: -20 °C to +55 °C
Weight: 8.7 kg
Dimensions (L x D x H) in mm: 185 x 260 x 310

More Information

Ean	8055195000993
Shipping	Shipping 24/48H
Warranty	2 year warranty
Type of Gate	Swing gate
Technology	electromechanical
Motor type	Articulated Arm
Power supply	24v
