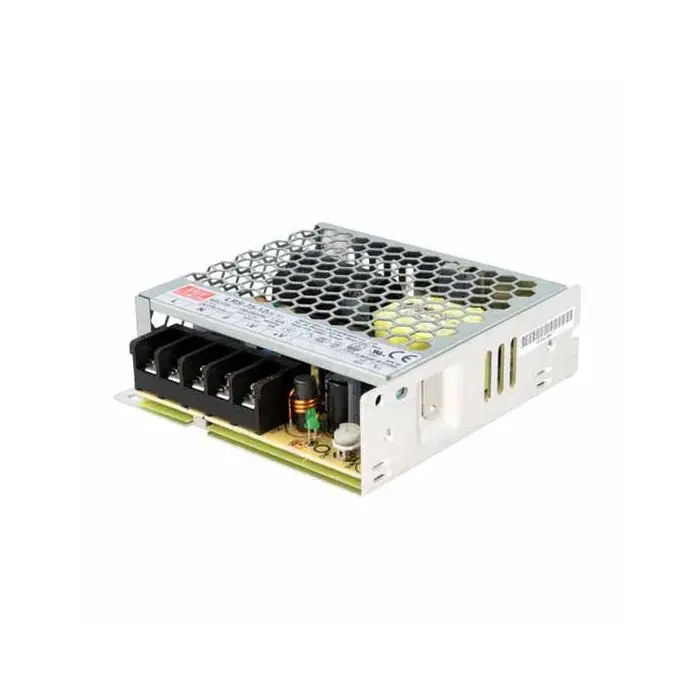

https://www.liberotech.com/ww/72w-12vdc-6a-single-output-switching-power-supply-lrs-75-12-meanwell.htmlLRS-75-1272W 12Vdc 6A Single Output Switching Power Supply LRS-75-12 MEANWELL<div>72W 12Vdc 6A Single Output Switching Power Supply <strong>Meanwell LRS-75 </strong><strong>Series </strong><strong>Mod. </strong><strong>LRS-75-12</strong></div>
<div></div>
<div>LRS-75 series is a 75W singl e-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V and 48V.</div>
<div></div>
<div>In addition to the high efficiency up to 91.5%, the design of metallic mesh case enhances the heat dissipation of LRS-75 that the whole series operates from -30°C through 70°C under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement. LRS-75 has the complete protection functions and 5G antivibration capability; it is complied with the international safety regulations such as TUV EN60950-1, EN60335-1,EN61558-1/-2-16, UL60950-1 and GB4943.</div>
<div></div>
<div>LRS-75 series serves as a high price to performance power supply solution for various industrial applications.</div>
<div></div>
<div><strong>Features </strong></div>
<ul>
<li>Universal AC input / Full range</li>
<li>Withstand 300VAC surge input for 5 second</li>
<li>No load power consumption < 0.3W</li>
<li>Miniature size and 1U low profile</li>
<li>High operating temperature up to 70°C</li>
<li>Protections: Short circuit / Overload / Over voltage</li>
<li>Cooling by free air convection</li>
<li>Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, -2-16 for household appliances</li>
<li>Operating altitude up to 5000 meters </li>
<li>Withstand 5G vibration test</li>
<li>High efficiency, long life and high reliability</li>
<li>LED indicator for power on</li>
<li>100% full load burn-in test</li>
</ul>
<div><strong>Applications</strong></div>
<ul>
<li>Industrial automation machinery</li>
<li>Industrial control system</li>
<li>Mechanical and electrical equipment</li>
<li>Electronic instruments, equipments or apparatus</li>
<li>Household appliance</li>
</ul>https://www.liberotech.com/media/catalog/product/_/l/_l_r_lrs-75-12.jpg12.96instock12.9612.9600MEANWELL000https://www.liberotech.com/media/catalog/product/_/l/_l_r_lrs-75-12.jpg/Video security/Video security/CCTV power suppliers16878578710001052200
