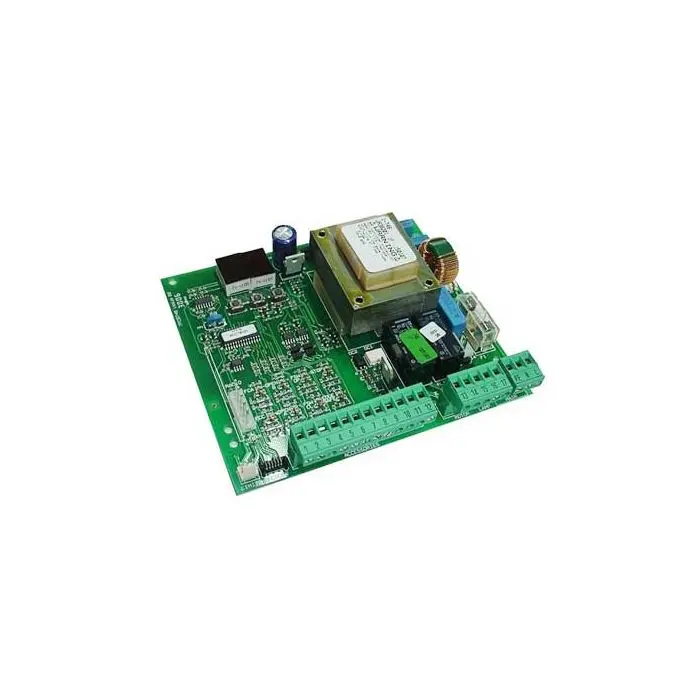

740 D control board for 230V Gearmotor 740 e 741 FAAC 202269

Name: 740 D control board for 230V Gearmotor 740 e 741 FAAC 202269
Brand: FAAC
SKU: 202269
Price: 96.9 EUR
Availability: OutOfStock
Rating: 100 (2 reviews)

(2)

Out of stock

SKU: 202269

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

740 D control board for 230V Gearmotor 740 e 741 FAAC 202269

Data sheet

Power supply voltage: 230 Vac (+6% -10%) 50 (60) Hz
Absorbed power: 10 W
Motor max. load: 1000 W
Accessories max. load: 0,5 A
Operating ambient temperature: -20 °C to +55 °C
Protection fuses: 2
Function logics: Automatic/”Stepped” automatic/Semi -automatic/Safety/Semi-automatic B/ “Dead man” C/ Stepped” semi-automatic /Mixed logic B+C
Work time: Programmable (0 to 4 min.)
Pause time: Programmable (0 to 4 min.)
Thrust power: Adjustable on 50 levels
Terminal board inputs: Open/Partial Open/Opening safety device/ Closing safety device/Stop/Edge/Power supply & earth
Connector inputs: Opening and closing limit switches/ Encoder (optional)
Terminal board outputs: Flashing lamp Motor 24 Vdc Accessories power supply 24 Vdc Indicator light /timed output Failsafe
Rapid connector: 5-pin fi tting for Minidec cards, Decoder or RP receivers
Programming: 3 keys (+, -, F) and display, “basic“ and “advanced“ mode
“Basic” mode programmable functions: Function logics - Pause time - Thrust force - Gate direction
“Advanced” mode programmable functions: Torque at initial thrust - Brake - Failsafe – Pre-fl ashing – Indicator light/Timed output – Logic for safety devices at opening and closing - Encoder for anti-crushing electronic safety device, deceleration control and partial opening - Decelerations - Partial opening time – Work time - Service request – Cycle counter.
