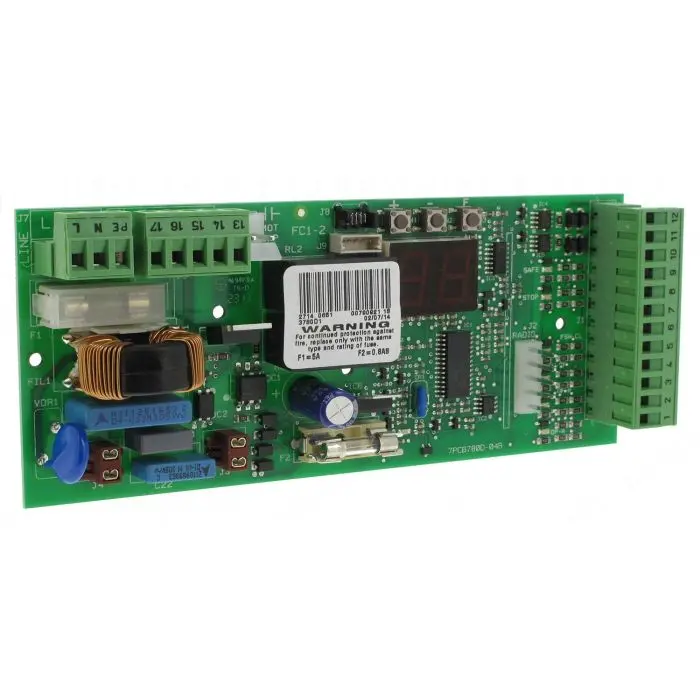

780D control board for 746 E R and 844 E R 230V gearmotor FAAC

Name: 780D control board for 746 E R and 844 E R 230V gearmotor FAAC
Brand: FAAC
SKU: 63000710
Price: 214.6 EUR
Availability: InStock
Rating: 100 (2 reviews)

(2)

In stock

SKU: 63000710

Are you a Reseller? Register Here

Description

FAAC 780D control board for 746 E R and 844 E R 230V gearmotor FAAC

Data sheet

Transformer Separated: (connection to fasten on the printed circuit)
Power supply voltag:e 230 Vac (+6%-10%) 50 (60) Hz
Absorbed power: 10 W
Motor max. load: 1000 W
Accessories max. load: 0,5 A
Operating ambient temperature: -20 °C to +55 °C
Protection fuses: 2
Function logics: Automatic/”Stepped” Automatic/Semi-automatic/ “Stepped” semi-automatic/Safety/ Semi-automatic B/”Dead man” C/ B/C mixed logic
Work time: Programmable (0 to 4 min)
Pause time: Programmable (0 to 4 min)
Thrust power: Adjustable on 50 levels
Terminal board inputs: Open - Partial Open - Opening safety devices - Closing safety devices - Stop - Edge - Power supply & Earth
Connector inputs: Opening and closing limit switches / Motor capacitor
Terminal board outputs: Flashing lamp/Motor/24Vdc Accessories power supply /24Vdc Indicator light 24Vdc / Timed output / Electric lock control / Traffi c light / Failsafe
Rapid connector: 5-pin fi tting for Minidec cards, Decoder or RP receivers
Programming: 3 keys (+, -, F) and display, “basic“ and “advanced“ mode
“Basic” mode programmable functions: Function logics - Pause time - Thrust power - Opening/closing direction
“Advanced” mode programmable functions: Torque at initial thrust - Brake - Failsafe - Pre-fl ashing - Indicator light/Timed output / Electric lock at opening and closing / Logic for safety devices at opening and closing - Encoder / Anti-crushing sensitivity - Decelerations - Partial opening time - Work time - Service request - Cycle counter Status signalling On display
Enclosure compatibility: -
