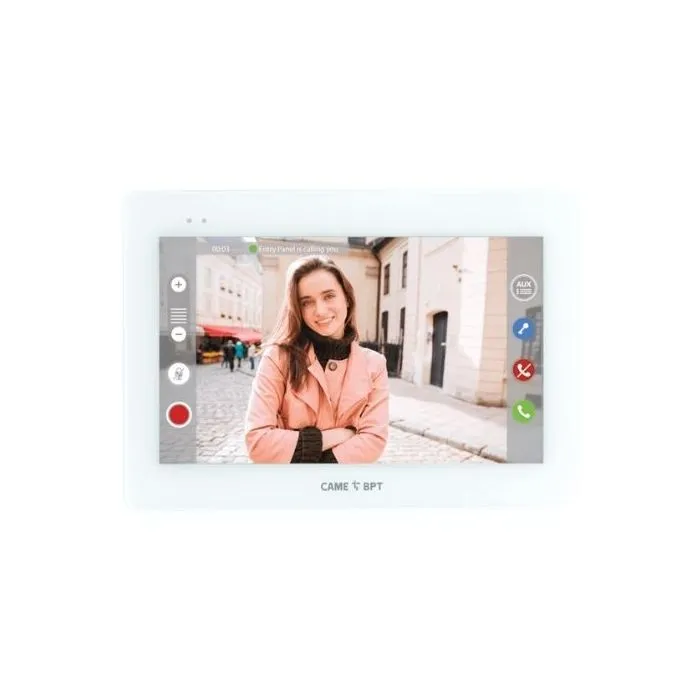

BPT XTS 7IP WH WIFI hands-free video door phone - 840CH-0060

Name: BPT XTS 7IP WH WIFI hands-free video door phone - 840CH-0060
Brand: CAME
SKU: 840CH-0060
Price: 355.73 EUR
Availability: OutOfStock

Out of stock

SKU: 840CH-0060

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

Full-touch hands-free video door phone for IP360 system, 7˝ touch-screen TFT display, equipped with Wi-Fi and Graphic User Interface, white color.Wall monitor with 7˝ touch-screen TFT display with Optical Bonding technology, integrated Wi-Fi to remotely call on a smartphone with a dedicated app. User interface for the management of video door entry functions, intercom calls, video secretary, text messaging. Uses SIP protocol and G711 audio codec and H.264 video. RJ45 port for network connection, PoE or local power. Integrated web server for configuration and firmware updates. The bracket is included for wall installation on 503 box (horizontal) and on round box Ø 60 mm. Prepared for built-in installation with dedicated box. Compatible with IP360 system.

MAIN FEATURES

Audio speakerphone
Capacitive touch screen
"Moth eye" display as anti-glare
Auxiliary functions / porter call
Intercom calls
"Panic" button for requesting assistance to the doorman
Chime adjustment / exclusion (with signaling LED)
Video auto-insertion of external units
Video answering and video recording
Local power supply or POE

Data sheet

MODELSXTS 7IP WH WIFI Dimensions (mm) 185 x 129 x 24 Local power supply (V) 14 ÷ 18 DC Local absorption (mA) - PoE power supply IEEE 802.3af-PD Absorption in stand-by (mA) 340 Max. Absorption (but) 420 Operating temperature (° C) 0 ÷ +40 Degree of protection (IP) 30 Video standard H.264 Frequency (MHz) 2.412 - 2.472 Wireless Standard IEEE 802.11b / g / n Color White

More Information

Shipping	Shipping 24/48H
illuminazione_cri	>80
Panel thickness	35mm
Ampere	6A
Colore	White
Warranty	2 year warranty
Connectivity	Wireless
Sensore Pir	no
Ean	8004487964932
Smart home	No
