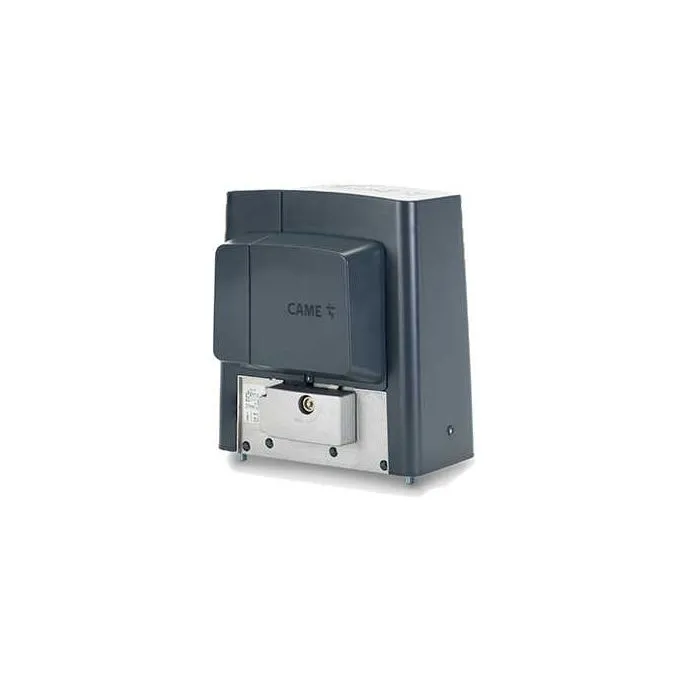

Automation with electronic card, built-in radio decoding and mechanical limit switches for sliding gates up to 2200 Kg and 20 m in length.
New BK version with renovated houses and new ZBKN electronics. BKS22AGE ex BK-221. Intensive use version
Maximum flexibility in the automation of multi-user passages
BK is the complete answer to the needs of automation on condominium, industrial and collective sliding gates in general. BK is the ultimate technology for service and safety, as required by the CAME standards.
The 230V electronics
In addition to the usual command and safety functions, the new 230V BK series electronics offer some peculiarities that allow for total automation control and optimization of the service; here are some:
Safe and easy passage with the possibility to connect and control auxiliary lighting of the entrance area.
Partial opening to facilitate the pedestrian crossing, without opening the whole window.
Testing of the active safety devices on the system before each gate maneuver is in opening or closing.
TemplateBKS22AGE
Degree of protection
IP54
Supply
230
Motor power supply
230 AC 50/60 Hz
Absorption
5,1A
Power
580W
Maneuvering speed
10,5m / min
Job intermittency
INTENSIVE
thrust
1500N
Motor protection
150 ° C
Operating temperature
-20 ° C min +55 ° C max
