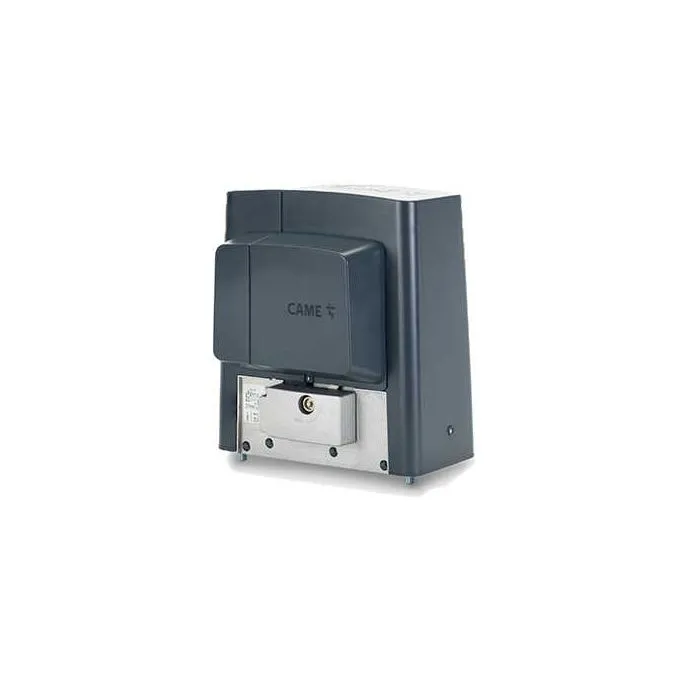

Automation with electronic board, built-in radio decoding and mechanical limit switches for sliding gates up to 2200 kg and 20 m in length.
Pinion module 6.
New BK version with renewed case and new ZBKN electronics. BKS22AGS ex BK-2200
Maximum flexibility in automating multi-user passages
BK is the complete answer to the automation needs of condominium, industrial and collective sliding gates in general. BK is the maximum in technology for service and safety, as required by CAME standards.
230V electronics
In addition to the usual control and safety functions, the new 230V BK series electronics offer some features that allow for total control of the automation and optimisation of the service; here are some of them:
Safe and easy passage with the possibility of connecting and controlling auxiliary lighting in the entrance area.
Partial opening to facilitate pedestrian passage, without opening the entire window.
Test of the active safety devices on the system before each gate operation, both in opening and closing.
Model BKS22AGS Degree of protection IP54 Diet 230v Engine power supply 230v 50/60Hz Absorption 5.1 Power 580W Maneuvering speed 10.5m/min Intermittent work 50% Push 1500N Engine thermal protection 150°C Operating temperature -20°C min +55°C max
