CAME replacement board replacement kit for ZL65 and ZL180 - 88006-0102 (ex 3199zl180)

Name: CAME replacement board replacement kit for ZL65 and ZL180 - 88006-0102 (ex 3199zl180)
Brand: CAME
SKU: 88006-0102
Price: 245 EUR
Availability: InStock

In stock

SKU: 88006-0102

Are you a Reseller? Register Here

Description

CAME Conversion Kit from ZL180 - ZL65

Composed of:

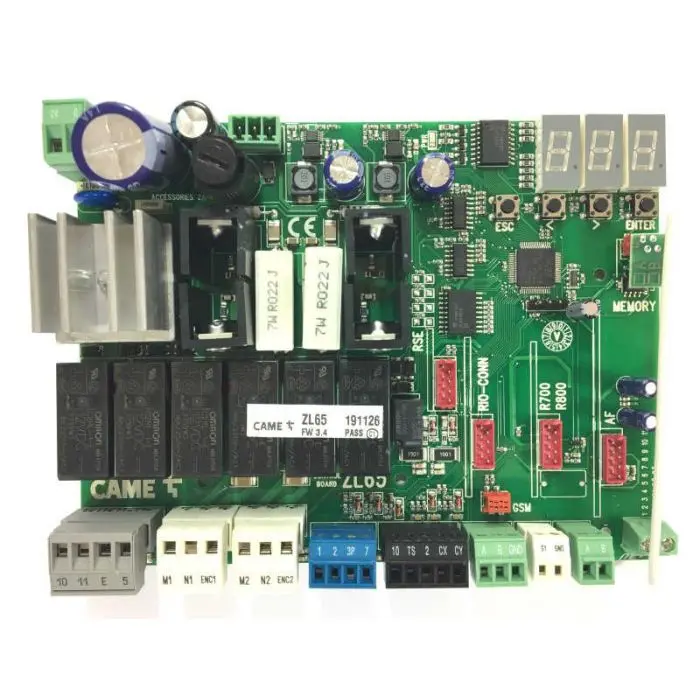

CAME 3199ZL65 board without case, without transformer, fuse holder, conversion instructions
For connection to 1 or 2-leaf systems
Suitable for 24V series motors: SWN20, SWN25, AXI20, AXI25, FAST FA7024, FAST F7024N, ATI A3024N, ATI A5024N, FTX20, ATS, AXO
Direct connection of RIO accessories and components (RIOCONN required)
Emergency operation with batteries possible (RLB card and batteries required)
Prepared for remote control via CAME CLOUD (additional components required)
Connection for 230 Volts
Maximum power: 300 Watts

Functions controlled by the engine control unit:

Automatic entrances
Partial pedestrian entrances
Dead man operation
Obstacle detection
Photocell safety test
Signal light control (flashing)
Remote control (requires AF43S or AF868)

Configurable command types:

Opening/Assignment
Partial assignment
Opening/stop/closing/stop
Emergency stop
Simple setting of all parameters and motion path

Package contents:

1 CAME conversion kit from ZL180 to ZL65

More Information

SKU Padre	88006-0102
Ean	8050456093608
Shipping	Shipping 24/48H
Warranty	2 year warranty
Voltage	24V
Compatibility	Ati, Axo, ATS, AXI, FAST, FTX, SWN
Installation	Incasso
Waterproof	IP20

Reviews (0)
