CARDIN CDR842A Pair of 15m outdoor photocells in armored aluminum grade III for gate automation

Name: CARDIN CDR842A Pair of 15m outdoor photocells in armored aluminum grade III for gate automation
Brand: CARDIN
SKU: CDR842A
Price: 68.8 EUR
Availability: OutOfStock

Out of stock

SKU: CDR842A

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

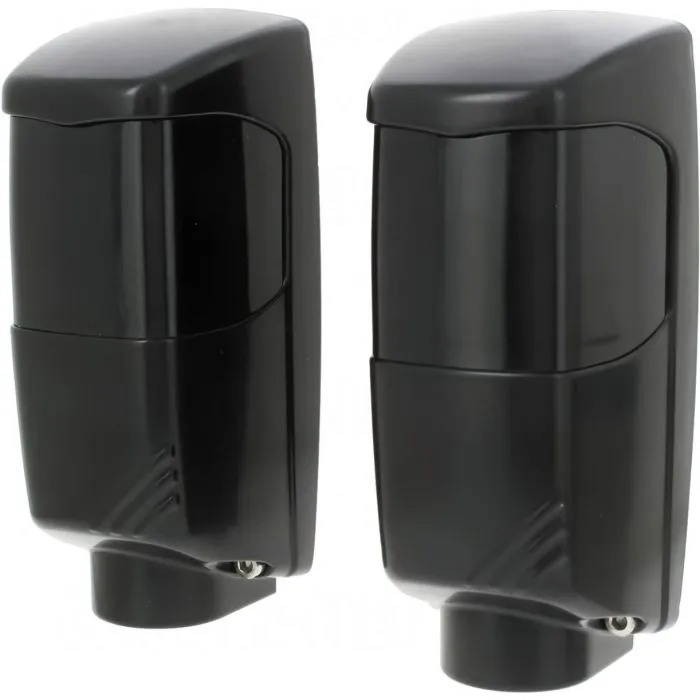

Pair of modulated infrared photocells, specific for gate automation. CDR842A is a detection system designed to guarantee protection on passages or spaces subject to automated installations of doors and gates. This system consists of a projector and a receiver housed in armored aluminum containers.

Key features include a range ranging from 15 to 60 meters, a wide range of supported power supplies (12/24 Vac-dc) and an IP66 protection rating, which ensures complete protection against dust and the effects of water .

The robust structure is completed by a high-resistance paint, which contributes to the durability of the product over time. The optics are mounted on self-friction joints, allowing both horizontal and vertical adjustments to adapt to the specific needs of the installation.

The system is equipped with a double relay control with switches in series, ensuring greater safety. Additionally, the CDR852A version of the receiver features a sensitivity adjustment trimmer for further customization options.

The kit includes all components necessary for assembly, including the projector and receiver in aluminum cases, pipe glands and screws. The system's operating temperature ranges from -10°C to +55°C, ensuring reliable operation in a wide range of climate conditions.

Data sheet

Range : From 15 to 60 meters.
Power supply : 12/24 Vac-dc.
Degree of Protection : IP66, which guarantees complete protection against dust and against the effects of temporary immersion in water.
Enclosures : Projector and receiver are housed in watertight aluminum enclosures.
Painting : Highly resistant, ensuring longer product life even in adverse environmental conditions.
Optics : Mounted on self-friction joints, with the possibility of adjustment both horizontally (90° rotation) and vertically (+/-30° compared to the standard position).
Control : Double relay with switches in series, ensuring greater safety.
Sensitivity Adjustment Trimmer : Present only in the CDR852A version of the receiver.
Kit : Contains 1 projector in an aluminum container, 1 receiver in an aluminum container, 2 pipe clamps and the necessary screws for assembly.
Operating Temperature : From -10°C to +55°C, ensuring reliable operation even in extreme climatic conditions.

More Information

Ean	7427129128027
Shipping	Shipping 24/48H
Warranty	2 year warranty
Installation	a superficie
