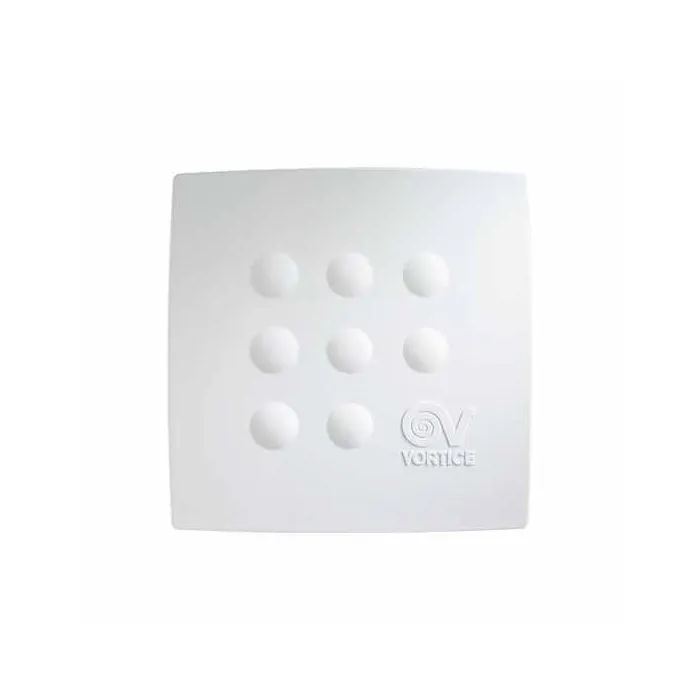

Centrifugal duct fans Vortice Quadro Micro 80 - sku 11638
Product description
Material: white ABS plastic
Capacitor start 2-speed induction motor coupled to a forward bladed centrifugal impeller. Equipped with thermal overload cutout and self-lubricating bushings.
Nominal diameter 80 mm.
Minimum air flow 60 m3/h
Maximum air flow: 85 m3/h
IMQ SAFETY and IMQ PERFORMANCE certifications.
Vortice speed controller.
Absorbed power 1st speed (W): 19
Absorbed Power max (W): 19
Frequency (Hz): 50
Insulation Class: II°
IP Waterproof rating: X4
Max ambient temperature for continuous operation (°C): 50
Max. absorbed Current at max. speed (A): 0,13
Max. absorbed Current at min. speed (A): 0,10
Max. absorbed power at max speed (W): 27
Nominal Diameter (mm): 80
Discharge Hole (mm): Ø 73,5
Voltage (V): 220-240
Weight (Kg): 1,79
Delivery 1st speed (l/s): 17
Delivery 1st speed (m³/h): 60
Max delivery at max speed (l/s): 24
Max delivery at max speed (m³/h): 85
Pressure - 1st speed (mmH20): 22
Pressure - 1st speed (Pa): 216
Pressure max - max speed (mmH20): 27
Pressure max - max speed (Pa): 265
RPM max: 1580
RPM min: 1150
Sound pressure in free air conditions [dB(A)] 3m: 28,7
Sound pressure level Lp [dB (A)] 3m - max speed: 37
Sound pressure level Lp [dB (A)] 3m - min speed: 28,7
Shipping
Shipping 24/48H
Colore
White
Warranty
2 year warranty
Ean
8010300116389
Smart home
No
