In stock
|
SKU: HAC-T3A51P-Z-27135-S3-DIP
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card.

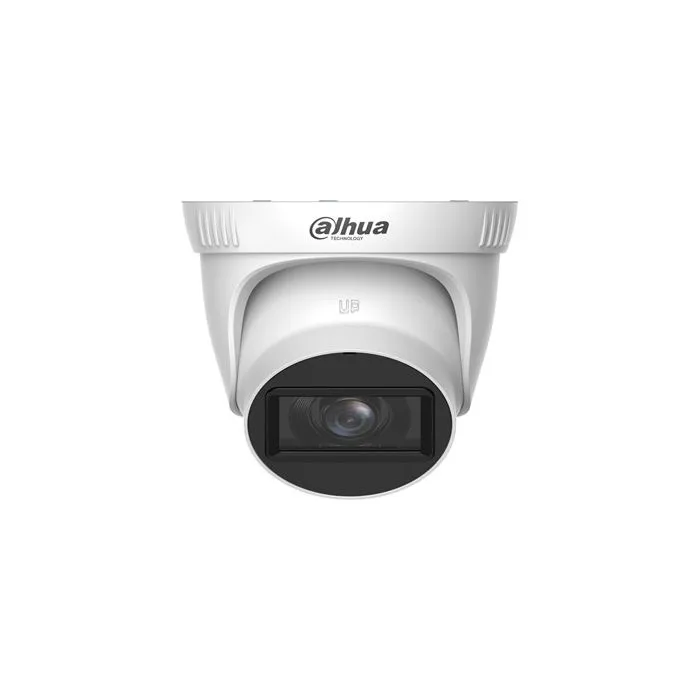

Dahua HAC-T3A51P-Z-27135-S3-DIP is a 4-in-1 analog dome camera from the Cooper series, with a 5 MP CMOS sensor and a 2.7-13.5 mm motorized varifocal lens.
The camera supports CVI, TVI, AHD, and CVBS video formats, selectable via DIP switches. Smart IR illumination reaches up to 60 meters, while IP67 protection allows for outdoor installation.
| Brand | Dahua |
| Model | HAC-T3A51P-Z-27135-S3-DIP |
| Series | Cooper |
| Typology | 4-in-1 Analog Dome Camera |
| Sensor | 5MP CMOS |
| Maximum resolution | 5 MP, 2880 × 1620 pixel |
| Optics | Motorized varifocal 2.7-13.5 mm |
| Maximum opening | F1.6 |
| Horizontal viewing angle | 32.7°-111.8° |
| Vertical viewing angle | 18.4°-58.3° |
| Diagonal viewing angle | 37.5°-135.2° |
| Minimum focusing distance | 0.3 m |
| Minimum illumination | 0.02 lux color; 0.002 lux black and white; 0 lux with illuminator active |
| IR illuminators | 4 IR LEDs |
| IR range | Up to 60 m |
| IR Control | Automatic or manual |
| Video output | BNC 4-in-1: CVI, TVI, AHD and CVBS |
| Select video format | Via DIP switch |
| Supported resolutions | 5 MP, 4 MP, 1080P and 960H |
| CVI Mode | 5 MP at 25 fps, 5 MP 16:9 at 12.5 fps, 4 MP at 25 fps, 1080P at 25 fps |
| AHD Mode | 4 MP at 25 fps |
| TVI mode | 5 MP 16:9 at 20 fps |
| CVBS mode | 960H |
| Image functions | DWDR, BLC, HLC, HLC Pro, Auto White Balance and Area White Balance, AGC, 2D NR |
| Day/Night Mode | Automatic, color and black and white |
| Smart IR | Yes |
| Privacy Masking | Up to 8 rectangular areas |
| OSD | Multilingual |
| Diet | 12 V DC ±30% |
| Maximum consumption | 10.1 W with infrared activated |
| Degree of protection | IP67 |
| Corrosion protection | Basic level |
| Material | Metal and plastic |
| Color | White |
| Operating temperature | From -30 °C to +60 °C |
| Operating humidity | <95% RH non-condensing |
| Dimensions | Ø122 × 108.7 mm |
| Net weight | 0.38 kg |
| Gross weight | 0.53 kg |
| Installation | On the wall, ceiling or on a vertical pole |
| EAN | 6937552479364 |
| Certifications | CE-LVD EN 62368-1; CE-EMC EN 55032 and EN 55035 |
| SKU Padre | HAC-T3A51P-Z-27135-S3-DIP |
|---|---|
| Ean | Non Applicabile |
| Shipping | Shipping 24/48H |
| Warranty | 3 years warranty |
| Material | Metal & Plastic |
| Connectivity | wire |
| telecamere_audio | No |
| Lens | motorized |
| camera type | Dome |
| Technology | Hybrid |
| Tecnologia colore | Full color |
| Waterproof | IP65 |
