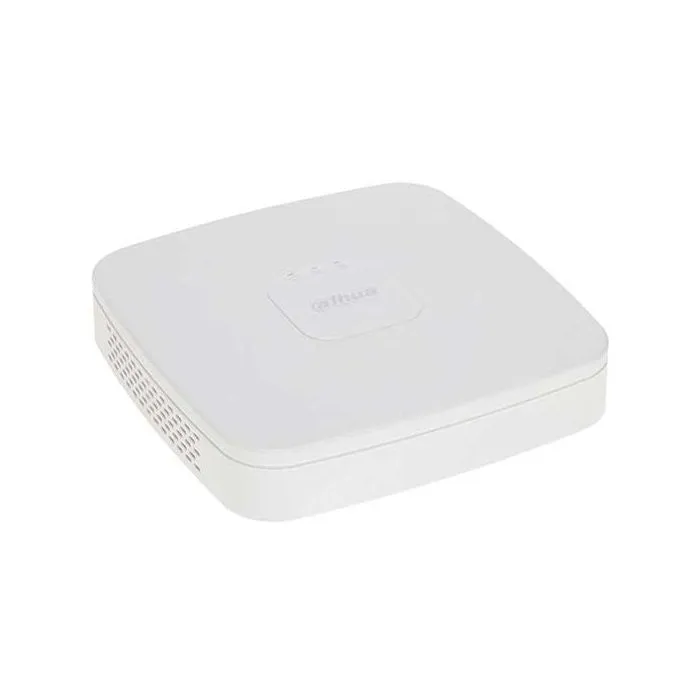

Dahua Lite series NVR is easy to install, cost effective and compatible with a wide variety of third-party devices, providing a great solution for small and medium surveillance systems. It is ideal for home safety, supermarkets, warehouses, educational institutions, and financial institutions.
Perimeter Protection by Camera
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.
SMD Plus by Camera
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
AI Search
With AI search, operators can search for videos by the attributes of targets and event types, which helps them to quickly and efficiently investigate where and when targets appeared and events took place.
Standard:
TCP/IP
Supported resolutions:
max. 12 Mpx - 4000 x 3000 px,
Video outputs:
1 pcs HDMI 1 pcs VGA
Audio support:
4 Channels - Audio from cameras
Audio inputs:
1 pcs CINCH
Audio outputs:
1 pcs CINCH
Image compression method:
H.265+ / H.265 / H.264+ / H.264
Supported hard drives:
1 x 16 TB SATA
Recording modes:
Manual, Motion Detection, Schedule
Network protocols:
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, Alarm Server, IP Search, P2P, ONVIF
External storage devices backup:
Backup to USB drive (pendrive, external drive)
Searching and playback the records:
Records searching: by time and events type. Records playback: forward, backward, fast, slow "Frame by Frame" playback function Channels played simultaneously : 1 @ 12 Mpx, 30 fps 1 @ 8 Mpx, 30 fps 2 @ 5 Mpx, 30 fps 3 @ 4 Mpx, 30 fps 6 @ 1080p, 30 fps
Bitrate:
max. 80 Mbps
Network functions:
Full support via network, Remote records copying, Web Server built-in
ONVIF:
Yes
Mobile phones support:
Port no.: 37777 or access by a cloud (P2P)
Android: Free application DMSS
iOS (iPhone): Free application DMSS
Default IP address:
192.168.1.108
Default admin user / password:
admin / - The administrator password should be set at the first start
Web browser access ports:
80, 37777
PC client access ports:
37777
Mobile client access ports:
37777
Alarm inputs / outputs:
No
PTZ control:
IP PTZ control
Motion Detection:
Sì
USB:
2 pcs USB 2.0
Main features:
Functions implemented in cooperation between the recorder and cameras that support these functions
Advanced peripheral protection functions: intrusion, crossing line with separate rules for vehicles and pedestrians,
classification of people and vehicles,
SMD PLUS - searching for an object classified as: human, motor vehicle
Motion Detection
Privacy zones
Mouse support:
Sì
IR remote controller in the set:
No
Power supply:
12 V DC / 1.5 A (power adapter included)
Weight:
0.42 kg
Dimensions:
205 x 206 x 48 mm
Supported languages:
English
Manufacturer / Brand:
DAHUA
