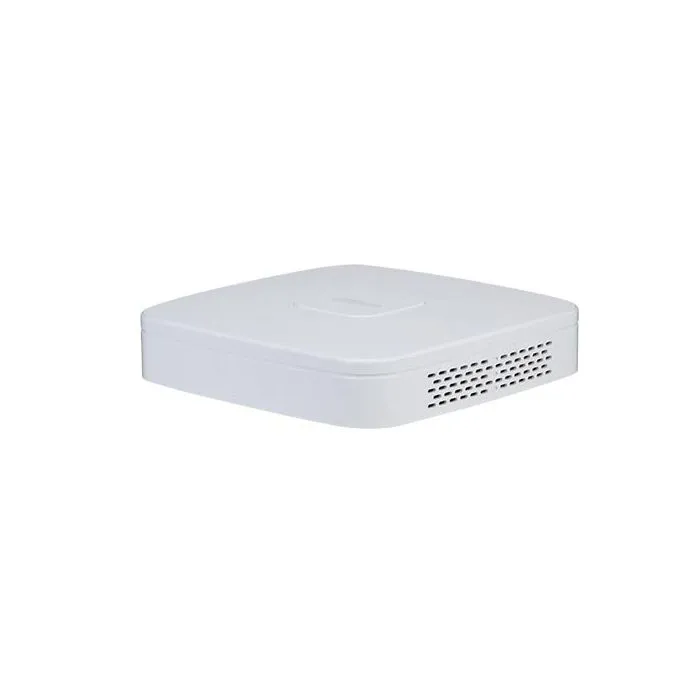

Dahua NVR4000-4KS2/L is introduced as the Lite series NVR that supports for 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control. Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF Profile S, T, G protocol, enabling interoperability with IP cameras.
Perimeter Protection by IP Camera Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improving alarm accuracy.
Face Detection by IP Camera Face detection is to detect if there is any human face appearing in the video. This technology adopts a deep learning algorithm to support face detection, tracking, optimization and capturing, and then output the best face snapshot.
SMD Plus by IP Camera With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
People Counting by IP Camera With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs yearly/monthly/weekly/daily reports to meet your requirements.
Smart Codec With advanced scene-adaptive rate control algorithm, Dahua smart codec technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
DMSS The DMSS app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access back-end devices, view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at anytime from virtually anywhere.
Features
NVR Smart 1U 4K 16 channels with Industrial-grade embedded processor.
Standard:
TCP/IP
Supported resolutions:
max. 8 Mpx
Video outputs:
1 pcs HDMI 4K 1 pcs VGA
Audio support:
16 Channels Channels - Audio from cameras
Audio inputs:
1 pcs CINCH (RCA) - External microphone input
Audio outputs:
1 pcs CINCH (RCA)
Image compression method:
Smart H.265/H.265/Smart H.264/H.264/MJPEG
USB:
2 pcs USB 2.0 (2 × back USB2.0)
Supported hard drives:
1 x 10 TB SATA III
Recording modes:
Manual record; alarm recording; SMD recording; smart recording
Network protocols:
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
External storage devices backup:
Backup to USB drive (pendrive)
Searching and playback the records:
Records searching: by time and events type. Records playback: forward, backward, fast, slow Advanced searching (to the one second accuracy) All channels synchronous playback, Smart Search function
Network Bandwidth
Access: 160 Mbps; Storage: 160 Mbps; Forward: 64 Mbps
Network functions:
Full support via network, Remote records copying, Web Server built-in max. 128 on-line users
Mobile phones support:
Port no.: 37777 or access by a cloud (P2P)
Android: Darmowa aplikacja gDMSS Plus
iOS (iPhone): Darmowa aplikacja iDMSS Plus
Default IP address:
192.168.1.108
Default admin user / password:
admin / - The administrator password should be set at the first start
Web browser access ports:
80, 37777
PC client access ports:
37777
Mobile client access ports:
37777
Alarm inputs / outputs:
No
PTZ control:
IP Speed Dome Cameras
Motion Detection:
22 x 18 motion zones - after motion detection records detected channels only
Mouse support:
Yes
IR remote controller in the set:
No
Main features:
The Network Video Recorder (4KS2/L series) video recorder supports cameras with AI, SMD & IVS on board. It is not possible to program the intelligent functions on IP cameras that do not have AI, SMD & IVS technology,
Perimeter Protection by IP CameraPerformance: 8 channels.AI Search: Search for pictures by channel, time and event type.
Face Detection by IP CameraPerformance: 4 channels.Face Attributes: 6 attributes: Gender, age, glasses, expression, mouth mask, and beard.AI Search: Search for pictures by channel, time and face attributes.
SMD Plus by IP CameraPerformance: 12 channels.AI Search: Search by target classification (human, vehicle).
Power supply:
12 V DC / 2A (power adapter included)
Weight:
0.45 kg
Dimensions:
204.6 mm × 206.4 mm × 48.1 mm (8.06" × 8.12" × 1.90") (W × L × H)
Supported languages:
Polish, English, Bulgarian, Czech, Danish, Finnish, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Romanian, Slovenian, Serbian, Swedish, Hungarian, Italian
Country of origin:
China
Manufacturer / Brand:
DAHUA
https://www.liberotech.com/ww/dahua-nvr4116-4ks2-l-16ch-smart-1u-ultra-hd-4k-at8mpx-hdmi-vga-80mbps-1hdds-onvif-h-265-p2p.htmlNVR4116-4KS2/LDahua NVR4116-4KS2/L 16CH smart 1U Ultra-hd 4K @8mpx HDMI/VGA 80Mbps 1HDDs Onvif h.265 p2p<p>Dahua NVR4000-4KS2/L is introduced as the Lite series NVR that supports for 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control. Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF Profile S, T, G protocol, enabling interoperability with IP cameras.</p>
<p><strong>Perimeter Protection by IP Camera</strong><br />Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improving alarm accuracy.</p>
<p><strong>Face Detection by IP Camera</strong><br />Face detection is to detect if there is any human face appearing in the video. This technology adopts a deep learning algorithm to support face detection, tracking, optimization and capturing, and then output the best face snapshot.</p>
<p><strong>SMD Plus by IP Camera</strong><br />With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.</p>
<p><strong>People Counting by IP Camera</strong><br />With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs yearly/monthly/weekly/daily reports to meet your requirements.</p>
<p><strong>Smart Codec</strong><br />With advanced scene-adaptive rate control algorithm, Dahua smart codec technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.</p>
<p><strong>DMSS</strong><br />The DMSS app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access back-end devices, view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at anytime from virtually anywhere.<br /><br /></p>
<p><strong>Features</strong></p>
<ul>
<li>NVR Smart 1U 4K 16 channels with Industrial-grade embedded processor.</li>
<li>New 4.0 user interface, Security baseline 2.1</li>
<li>Supported resolution up to @8Mpx megapixel.</li>
<li>Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive decoding.</li>
<li>Video compression H.265/H.265/Smart H.264/H.264/MJPEG dual codec decoding</li>
<li>Network Bandwidth: Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps</li>
<li>Simultaneous video output HDMI (4K) / VGA output, supports simultaneous video sources output for VGA and HDMI</li>
<li>Visibility remotely up to 128 concurrent users</li>
<li>Supports 1 SATA HDDs up to 10 TB, 2 x USB (2 × back USB2.0)</li>
<li>Multi-brand network cameras Dahua, Arecont Vision, Axis, Bosch, Brickcom, Canon, CP Plus Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek e ecc - ONVIF(profile T/S/G); CGI; SDK</li>
<li>AI, IVS and SMD Plus by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD Plus.</li>
<li>Supports remote configuration and management of IPC, such as set ting parameters, getting information, and upgrading IPC of the same model in batches.</li>
<li>3D intelligent positioning with Dahua PTZ camera</li>
<li>P2P remote surveillance, video play on mobile device. Vision Mobile on iPhone, iPad and Android</li>
<li>Multiple access remotely: Web viewer, CMS (DSS / PSS) & DMSS.</li>
</ul>
<p></p>
<p><a href="https://www.liberotech.it/en/ivs-dahua-en" target="_blank">IVS Dahua Technology - More information click here!</a></p>https://www.liberotech.com/media/catalog/product/_/n/_n_v_nvr4116-4ks2-l.jpg131.78outofstock131.78131.7800DAHUA000https://www.liberotech.com/media/catalog/product/_/n/_n_v_nvr4116-4ks2-l.jpg34363854723210640/Video security/Video security/IP video surveillance/Video security/IP video surveillance/Nvr IP video recorders1687857562000314600
