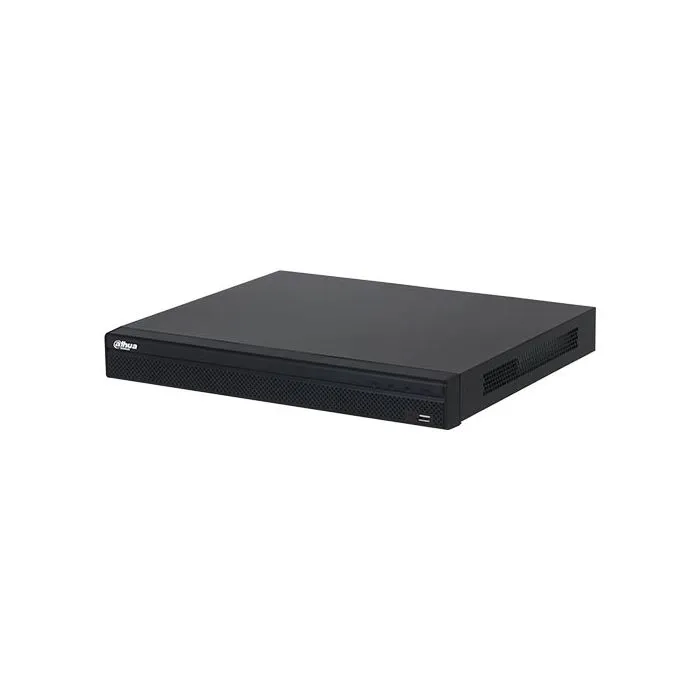

Dahua NVR4208-8P-4KS3 8CH Ultra-hd 4K @12Mp HDMI/VGA + PoE switch 8 ports 160Mbps 1U 2HDD SMD Plus h.265+ p2p alarm Onvif

Name: Dahua NVR4208-8P-4KS3 8CH Ultra-hd 4K @12Mp HDMI/VGA + PoE switch 8 ports 160Mbps 1U 2HDD SMD Plus h.265+ p2p alarm Onvif
Brand: DAHUA
SKU: NVR4208-8P-4KS3
Price: 266.22 EUR
Availability: OutOfStock

Out of stock

SKU: NVR4208-8P-4KS3

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

Dahua NVR4208-8P-4KS3 NVR digital video recorder equipped with advanced technology, ideal for managing 8-channel IP surveillance systems with PoE (Power over Ethernet) support. This device is designed to take advantage of the Deep Learning algorithm, offering exceptional video quality up to 4K ULTRA-HD with a maximum resolution of 12 Megapixels. Thanks to 160 Mbps bandwidth and Smart H.265+ compression technology, it enables efficient storage space management and smooth data transmission. It supports IP cameras equipped with artificial intelligence and SMD (Smart Motion Detection) technology, ensuring precise and intelligent monitoring. You can install up to two hard drives with a total capacity of 20 TB, not included in the package. Among its connectivity, we find VGA and HDMI (4K) outputs, two USB 3.0 ports, four alarm outputs and two alarm inputs, as well as an RJ45 LAN port with speed of 10/100/1000 Mbps and PoE support. The device also offers two-way audio via RCA format. It is the ideal choice for those looking for a robust and advanced NVR for the control and management of complex video surveillance systems.

Data sheet

System
Main processor	Industrial-grade processor
Operating system	Embedded Linux
Operational interface	Web, local GUI
TO THE
AI via recorder	SMD Plus
AI via camera	Facial recognition; Facial recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Perimeter protection
AI edge performance per camera (number of channels)	6 channels
Facial recognition
Facial attributes	Type; age range; eyeglasses; expressions; mask; beard
AI face detection performance per camera (number of channels)	6 channels
Facial recognition
AI facial recognition performance per camera (number of channels)	6 channels
SMD Plus
SMD Plus Recorder	4 channels: secondary filtering for people and motor vehicles, reducing false alarms caused by leaves, rain and changes in lighting conditions
SMD Plus for camera	6 channels
Audio and video
Access the channel	8 channels
Network bandwidth	AI disabled: 160 Mbps in, 160 Mbps recording and 80 Mbps out AI enabled: 80 Mbps in, 80 Mbps recording and 60 Mbps out
Resolution	12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF; QCIF
Decoding ability	AI disabled: 1 channel 12 MP at 30 fps; 2 channels of 8 MP at 30 fps; 3 channels 5 MP at 30 fps; 4 channels 4 MP at 30 fps; AI enabled 8-channel 1080p at 30fps: 1-channel 12MP at 30fps; 1 channel of 8 MP at 30 fps; 2 channels 5 MP at 30 fps; 3 channels 4 MP at 30 fps; 7 channels 1080p@30 fps
Video output	1 HDMI, 1 VGA Simultaneous: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous: HDMI: 1920 × 1080, 1280 × 1 024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720
Multi-screen display	Main screen: 1/4/8/9 Sub screen: 1/4/8/9
Third-party camera access	ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
Compression standard
Video compression	Smart H.265+; H.265; Intelligent H.264+; H.264
Audio compression	G.711a; G.711u; PCM; G726
Net
Network protocol	HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP filter; FTP; DDNS; SNMP; Alarm server; P2P; Automatic registration; IP Search (support IP camera, DVR, NVS, etc.)
Access to mobile phone	iOS; Android
Interoperability	ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Navigator	Chrome; MEANING WHAT; Safari; Edge; Firefox
Playback of the recording
Multi-channel playback	Up to 8 channels
Recording Mode	General, motion detection; intelligent; alarm
Backup method	USB device and network
Playback mode	Instant playback, general playback, event playback, tag playback, smart playback
Warehousing
Disk group	YES
Alarm
General alarm	Motion detection; privacy masking; video loss; scene change; PIR alarm; External IPC alarm
Anomaly alarm	Disconnecting the camera; storage error; disk full; IP conflict; MAC conflict; access blocked; and cybersecurity exception
Smart alarm	Facial recognition; Facial recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Connection of alarms	Documentation; instant; External IPC alarm output; Audio; buzzer; tree trunk; preset; e-mail
Brings
Audio input	1 channel RCA
Audio output	1 channel RCA
Alarm input	4 channels
Alarm output	2 channels (1 channel 12V 1A output）
Disk interface	2 SATA ports. Each disk can hold up to 20TB. This limit varies depending on the ambient temperature.
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI	1
VGA	1
Network port	1 (10/100/1000Mbps Ethernet port, RJ-45)
PoE port	8 ports, 10/100 Mbps, IEEE 802.3 af/at
General
Power supply	100–240 V AC, 50/60 Hz
Energy consumption	NVR total output is <10W (without HDD) PoE total output power is 130W, single port maximum output power is 25.5W
Net weight	2.47kg (5.45lbs)
Gross weight	3.68 kg (8.11 lb)
Product dimensions	375.0 mm × 327.9 mm × 53.0 mm (14.76" × 12.91" × 2.09") (W × D × H)
Packing dimensions	451.0 mm × 147.0 mm × 425.0 mm (17.76" × 5.79" × 16.73") (W × D × H)
operating temperature	–10 °C to +55 °C (14 °F to +131 °F)
Storage temperature	–20 °C to +60 °C (–4 °F to +140 °F)
Operating humidity	10%–93% (RH), non-condensing
Installation	Rack or desktop
Certifications	CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014

More Information

SKU Padre	NVR4208-8P-4KS3
Ean	Non Applicabile
Shipping	Shipping 24/48H
Warranty	3 years warranty
SSD	No
Bit rate	160 Mbps
Channel Recorders	8
Recorders Resolution	4K
Technology	IPC
