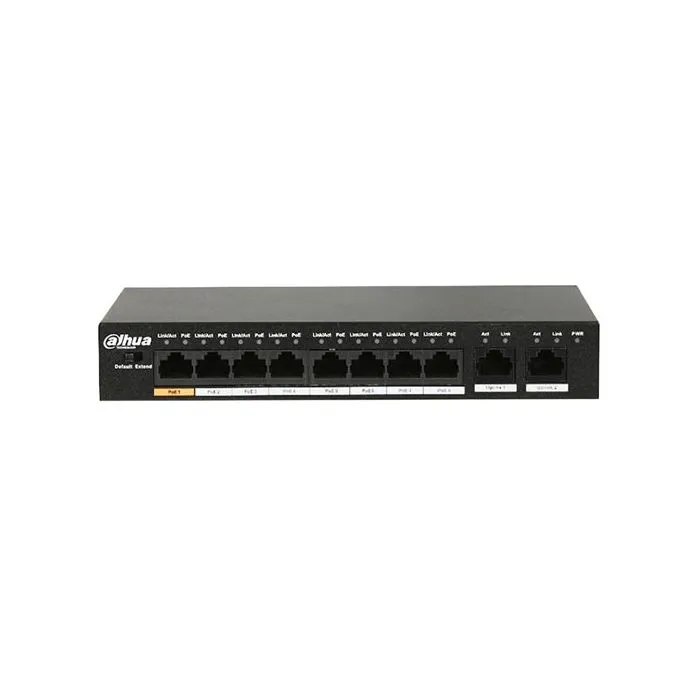

PFS3010-8ET-96 is a 8-port Fast Ethernet switch, which supports 250 meters long distance PoE transmission. It provides 8*10/100Mbps PoE ports and 2*1000Mbps uplink ports. The product is equipped with two transmission modes (Default/Extend), which are controlled by DIP switch.
Features
- Layer two commercial switch
- Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
- MAC auto learning, aging, MAC address capacity is 2K
- Supports MDI/MDIX self-adaptation
- RJ45 port supports 10/100/1000 Mbps self-adaptation
- Supports IEEE802.3af and IEEE803.3at power supply standards
- Adopts metal enclosure
- Supports Hi-PoE 60W
- Supports DC 48-57V power supply
Standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Management via WWW / console:
No
LAN ports:
2 x RJ45 10/100/1000 Base-T - Port Uplink,
1 x RJ45 10/100 Base-T + Hi-PoE
7 x RJ45 10/100 Base-T + PoE (802.3af/at)
Operation modes:
Extend On : 250 m, 10 Mb/s @ UTP cat. 5e, 6
Extend Off : 100 m, 100 Mb/s @ UTP cat. 5e, 6
Transmission speed:
10 / 100 Mb/s - 8 LAN & PoE ports
10 / 100 / 1000 Mb/s - 2 Uplink ports
Maximal output power:
30 W / port PoE 60 W / port Hi-PoE
Maximal total power:
96 W
MAC addresses table:
16k - Auto update of MAC addresses table
Transmission method:
Store and Forward
Main features:
Data Flow Control
protection against lightning discharges and voltage differences and strokes between devices
LED diodes:
Power, Link/Act, PoE
Power supply:
48 ... 57 V DC / 2.0 A (power adapter included)
Operation temp:
-10 °C ... 55 °C
Weight:
0.49 kg
Dimensions:
190 x 100 x 30 mm
Manufacturer / Brand:
DAHUA
