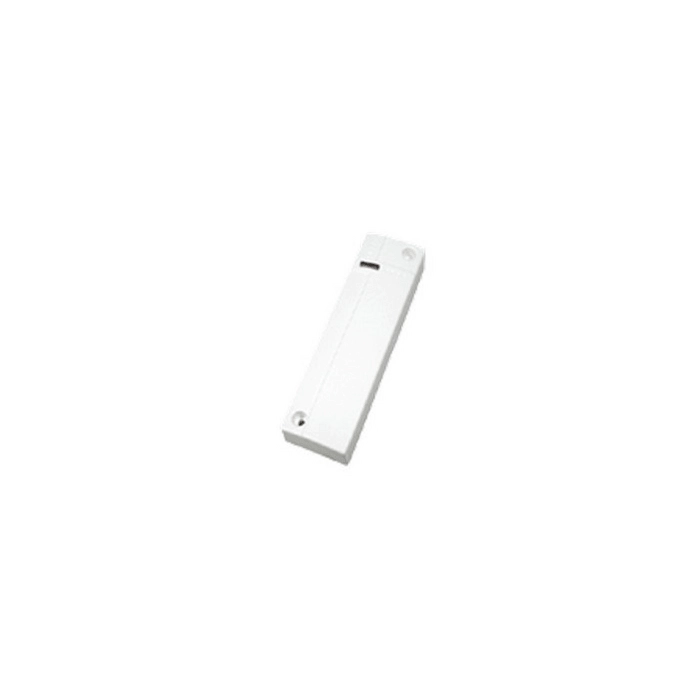

DC600I ELKRON - Magnetic contact with programmable auxiliary input - White

Name: DC600I ELKRON - Magnetic contact with programmable auxiliary input - White
Brand: ELKRON
SKU: 80MM1C00113
Price: 58.26 EUR
Availability: OutOfStock

Out of stock

SKU: 80MM1C00113

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

DC600I ELKRON - Magnetic contact with two wire inputs for the connection of a contact + tamper. High-speed signal transmission. Random signal supervision for integrity check. Integrated LED feedback. White color. Product code 80MM1C00113.

The magnetic contact with white DC600I wire inputs controls the opening / closing of specific devices (for example a door or a window). It is fixed to the door or window frame, while the actuating magnets are fixed to the door or to the window itself. When the door or window is opened, the magnet moves away from the contact, triggering the internal magnetic switch and activating the transmission of an alarm signal to the control panel. The device also has the possibility to send information related to faults and low battery signaling. The contact consists of a lid and a base. The lid contains all the electronic components, while the base is used for the installation of the device. An internal tamper tamper switch provides protection against unauthorized attempts to open or remove the device. The DC600I also has wire inputs that can be used to connect an NC contact (Normally Closed) to a wired device or a detector to open a shutter or shutter (we recommend using the Elkron MF01 wire contacts for roller shutter and MF02).

Data sheet

Power supply: 1 lithium battery 3V type CR2
Battery life: 5 years (typical value, may vary depending on use)
Bidirectional radio frequency: 868.6375 MHz
Operating temperature: -10 ° C to + 45 ° C
Dimensions: 107 mm x 32 mm x 22 mm
Weight: 100g
Certification EN 50131 Grade 2, Class 2

More Information

Shipping	Shipping 24/48H
Warranty	2 year warranty
Ean	Non Applicabile
Smart home	No
