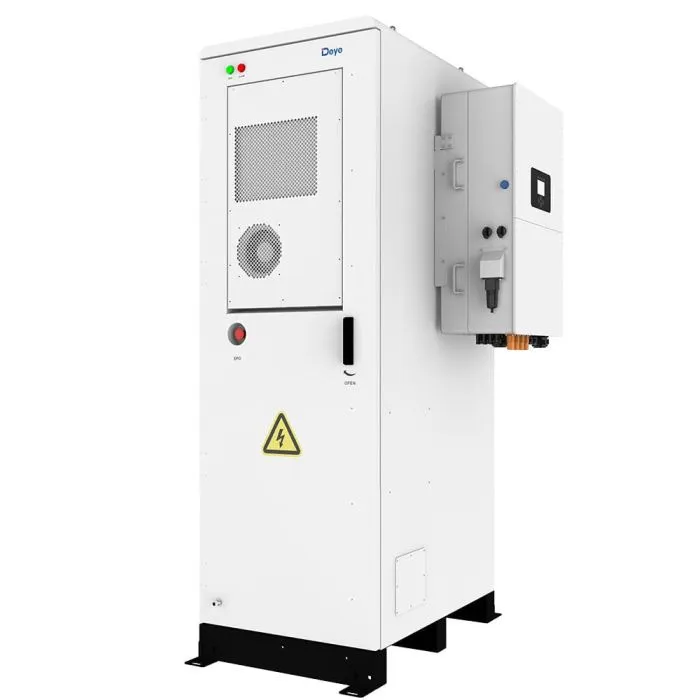

Deye GE-F60 Photovoltaic KIT 50kW ALL IN ONE Hybrid Three-Phase Inverter 50kW IP55 and LFP Storage 61.44 kWh

Name: Deye GE-F60 Photovoltaic KIT 50kW ALL IN ONE Hybrid Three-Phase Inverter 50kW IP55 and LFP Storage 61.44 kWh
Brand: V-TAC
SKU: 22023
Price: 28700 EUR
Availability: InStock

In stock

SKU: 22023

This product will be shipped within 10 working days

Are you a Reseller? Register Here

Description

ALL IN ONE kit - energy storage solution with lithium iron phosphate (LFP) battery GE-F60-EU(HV) from Deye:

Continuous Output Power: 50 kW
Total Energy Capacity: 61.4 kWh
Battery Chemistry: Lithium Iron Phosphate (LFP)
Modular Design: Includes 12 battery modules with a capacity of 5.12 kWh and 51.2 Vdc each
Battery Management System: Actively balances cell voltages, ensures long cycle life and features multiple safety mechanisms (voltage, current and temperature monitoring)
Cycle Life: Over 6000 cycles under standard test conditions
Enclosure: Floor mounted, IP55 rated indoor environment
- Dimensions: 2235mm (H) x 1045mm (D) x 735mm (W)
- Protection: Protects batteries and components from dust, moisture and contaminants
- Temperature Regulation: Integrated air conditioning for safe and optimized battery operation
Power Conversion System (PCS):
- Hybrid system for efficient bi-directional power flow between the DC battery system and AC electrical connections
- Key capabilities include off-grid start-up, off-grid power, frequency regulation and renewable energy integration
Energy Management System (EMS) Controller:
- Monitor system components, usage metrics and critical alarms
- Provides local and remote interfaces for monitoring
- Supports system expansion and third-party integration via multiple communication buses

Data sheet

Model GE-F60

System Specifications
Rated Output Power/UPS (W)	50000
AC Output Frequency/Voltage	50/60Hz; 3L/N/PE 220/380, 230/400Vac
Network Type	Three-phase
Energy Configuration (kWh)	61.4
Dimensions (W x D x H, mm)	735x1045x2235 (without inverter)
Approximate Weight (kg)	1015 (without inverter)
Rated AC Output Current (A)	75.8
Battery Operating Voltage (V)	500~700
Battery Chemistry	LiFePO4
Degree of Protection of the Enclosure	IP55
System Certifications	UN38.3, IEC62619, CE, CEI 0-21, VDE-AR-N 4105, IEC 62109
Installation Style	Floor mounting
Warranty	10 years
Inverter Technical Specifications
Maximum Photovoltaic Input Power (W)	65000
Maximum Photovoltaic Input Current (A)	36+36+36+36
Nominal Photovoltaic Input Voltage (Vdc)	600
DC Startup Voltage (Vdc)	180
MPPT Voltage Range (Vdc)	150-850
Maximum Photovoltaic Short Circuit Current (A)	44+44+44+44
Number of MPPTs	4
Peak Power (off grid)	1.5 times the rated power, 10s
Power Factor	0.8 early to 0.8 late
THD	<3%
DC Injection Current (mA)	<0.5ln
Display	LCD
Operating Temperature Range (℃)	-40~60 (>45℃ derating)
Relative humidity	15% ~ 85% (non-condensing)
Dimensions (W x D x H, mm)	420x233x670
Inverter communication	CAN, RS485, WIFI, ETH
EMC Safety/Standard	UL1741, FCC, IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000- 6-4
Network Regulation	VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Maximum efficiency	97.6%
Maximum Charge/Discharge Efficiency	91%
Battery Technical Specifications
Nominal Voltage of the Battery Module (V)	51.2
Battery Module Energy (kWh)	5.12
BMS communication	CAN
Battery Module Dimensions (W x D x H mm)	440x570x133
Battery Module Weight (kg)	45
Operating Temperature Range	Charge: 0～55℃ / Discharge: -20℃～55℃
Cycle Duration	≥6000(@25℃±2℃,0.5C/0.5C,70%EOL)
Battery Module Certification	CE, IEC62619, IEC62040, UN38.3

More Information

SKU Padre	GE-F60
Ean	3800170220768
Shipping	Shipping 24/48H
Warranty	10 years warranty
Colore	Gray
Waterproof	IP55
Power	50kW
Communication	Wi-Fi / Bluetooth
Inverter Type	Hybrid
Current	Three-phase
