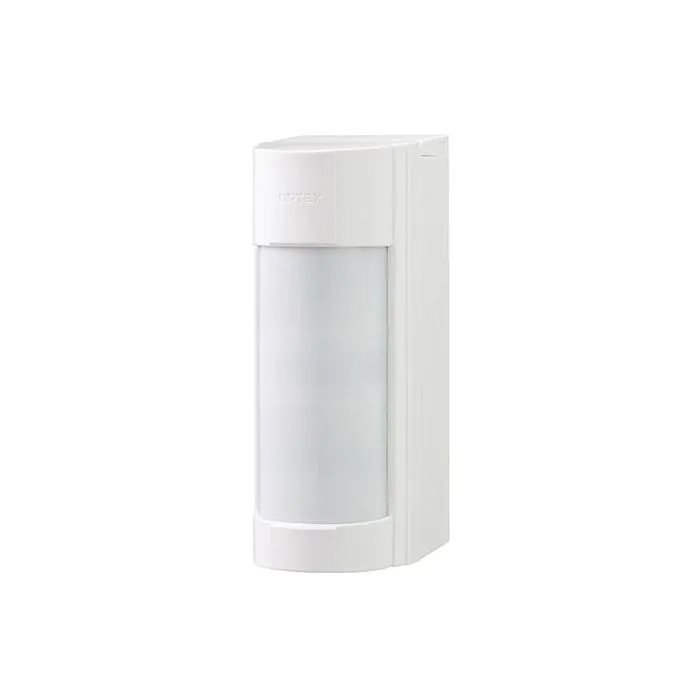

OPTEX VXI-RDAM VXS SHIELD wireless detector is designed for outdoor security, combining PIR and microwave technologies with low-power anti-masking. It guarantees a detection range of up to 12 meters at an angle of 90°, reducing false alarms and missed detections even in difficult environmental conditions. Digitally advanced SMDA technology distinguishes human heat sources from ambient heat sources, improving reliability. It is easy to install and offers a rectangular detection area configuration with shielding for bright environments. Includes masking protection and uses an OPTEX microwave module for superior robustness.
Detection Mode: Passive infrared and microwave detection
PIR detector coverage: width 12 m / 14 zones
PIR distance limit: from m 12 m to 1.5 (5 levels)
Detection speed: from 0.3 to 1.5 m/s
Sensitivity: 2.0°C @ 0.6 m/s
Power supply: 3 to 9VDC.
Current consumption: 18µA (standby)/4mA (max) @ 3Vdc.
Alarm duration: 2.0 ± 1 s
Heating time: about 60s (LED flashes)
Alarm output: NC / NO solid state switch 0.01A @ 10VDC.
Fault Output: Solid State Switch NC/NO 0.01A @ 10VDC.
LED indicator: Disabled: during normal operation enabled: during motion test or with switch LED on red: heating, alarm, masking detection yellow: heating, microwave detection
RF interference: no alarm up to 10V/m
Operating temperature: –20°C to +60°C
Humidity: 95% max.
Degree of protection: IP55
Fixing position: wall, pole (outdoor / indoor)
Fixing height: from 0.8 m to 1.2 m
Supplied accessories: Power and alarm connector, fault connector, screws (4x20mm) x2, masking stickers x3
