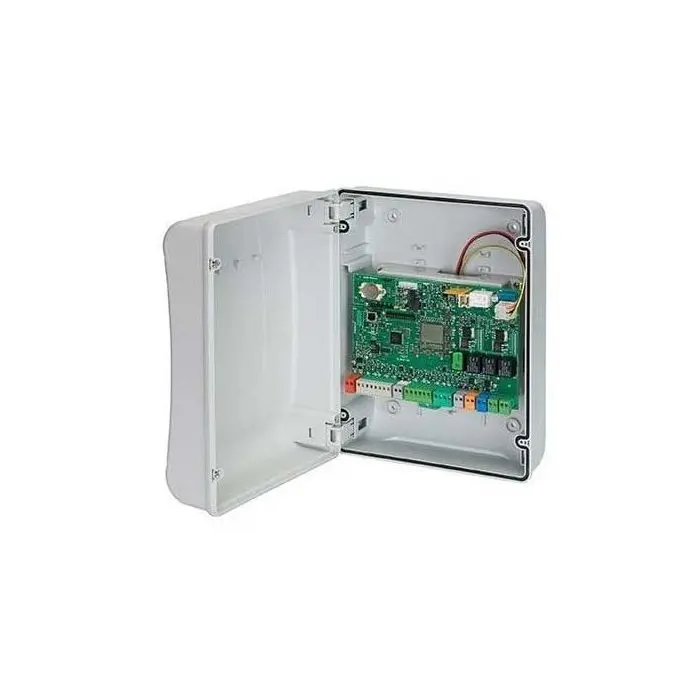

E124 control board with the box and converter FAAC 790284

Name: E124 control board with the box and converter FAAC 790284
Brand: FAAC
SKU: 790284
Price: 307.98 EUR
Availability: OutOfStock

Out of stock

SKU: 790284

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

E124 control board for use with one or two 24V motors.

Data sheet

Power supply voltage 230 Vac (+6%-10%) 50 (60) Hz
Absorbed power 4 W Stand-by approx 400 W max.
Motor max. current 7 A
Accessory power supply 24 Vdc
Accessory max. current 500 mA 24 Vdc - 500 mA BUS - 2 Easy
Operating ambient temperature -20°C to +55°C
Protection fuses power card 2.5A?control board self resetting
Function logics: Automatic (A), Semi-automatic (E), Automatic 1 (A1). "Stepped" automatic (AP), Dead man (C), Automatic safety (S), Stepped safety (SP), “Stepped” semi-automatic (EP) Semi-automatic B (B), Mixed logic (BC), Custom (customisable, programmable by the installer via PC)
Work time Programmable (from 0 to 10 min.)
Pause time Programmable (from 0 to 10 min.)
Motor power Adjustable over 50 levels
Inputs: BUS 2 Easy, inputs completely programmable via PC (open A, open B, close, priority open, priority close, emergency close, emergency open, stop, safety device at opening, safety device at closure) Inputs for 4 limits switches (open, close, motor 1/motor 2), connection inputs for 2 motors, encoders
Outputs 2 programmable multifunction outputs
Rapid connectors OMNIDEC (XF868), 5 pin board connection for Minidec, decoder, RP/RP2 receiver
Programming 3 keys (+, -, F) and LCD display, via PC with USB cable, via PC
Programmable functions: Logic, pause time a, pause time b, thrust, speed, deceleration spaces, leaf delay, wind-proof facility, reverse-stroke, soft-touch, stroke at opening and closing, initial thrust, deceleration speed, indicator lamp, fail-safe, programming of 2 Easy devices, service request, power-safe, battery charger timer function, battery operation, clock, time-out, pre-fl ashing time, motor type, encoder sensitivity.
Speed Adjustable over 10 levels
