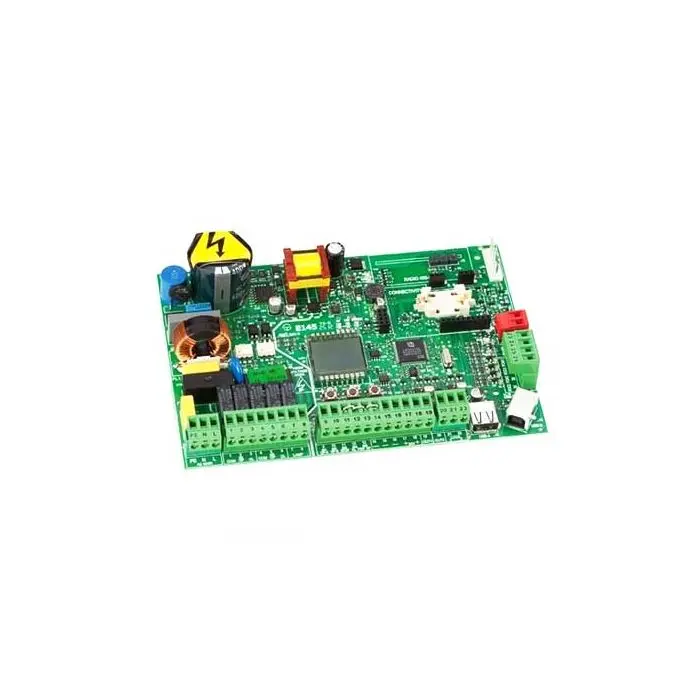

E145 control board replacement for FAAC 790006

Name: E145 control board replacement for FAAC 790006
Brand: FAAC
SKU: 790006
Price: 197.2 EUR
Availability: OutOfStock

Out of stock

SKU: 790006

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

Faac E145 control board has been designed and built to control swing-leaf and/or sliding gates for vehicle and pedestrian access control. Thanks to the innovative power supply switching system, the board is able to automatically adapt to different input voltages (from 90 Vac to 260 Vac) maintaining constant the output value of accessories, without being affected by variations.

Note: It replaces Faac 455 D control unit but has different dimensions so there can be problems with fitting it into older smaller casing.
Note: Faac E145 control board is designed to work with BUS system photocells but lets you use traditional photocells also (for example Faac SAFEBEAM).

Data sheet

Mains primary power supply: with power supply switching from 90 Vac to 260 Vac; 50/60 Hz
Power absorbed from mains: stand by=4 W; sleep <2 W; max about 400 W
Max. load for motors: 800 W
Accessories power supply: 24 Vdc
Max. accessories current: +24V max. 500 mA / BUS-2EASY max. 500 mA / LOCK (FAAC) 12 Vac/24 Vdc; LOCK (not FAAC) 24 Vdc 500 mA (3A peak)
Operating ambient temperature: -20°C +55°C
Power supply safety fuses: F1=F10AH250V
Work time: self-learned through SETUP (max. 4 min. and 10 sec.)
Pause time: programmable (from 0 to 9 min. and 50 sec.)
Motor power: programmable on 50 levels
Connector inputs: Decoder/Minidec/RP, X-COM, XF433/868 module, USB-A, USB-B
Terminal board inputs: mains power supply from 90 Vac to 260 Va, inputs from IN1 to IN5, limit switch, BUS-2EASY
Terminal board outputs: flashing lamp, motors, electric lock (LOCK1 and LOCK2), OUT1 and OUT2 (programmable), accessories power supply
