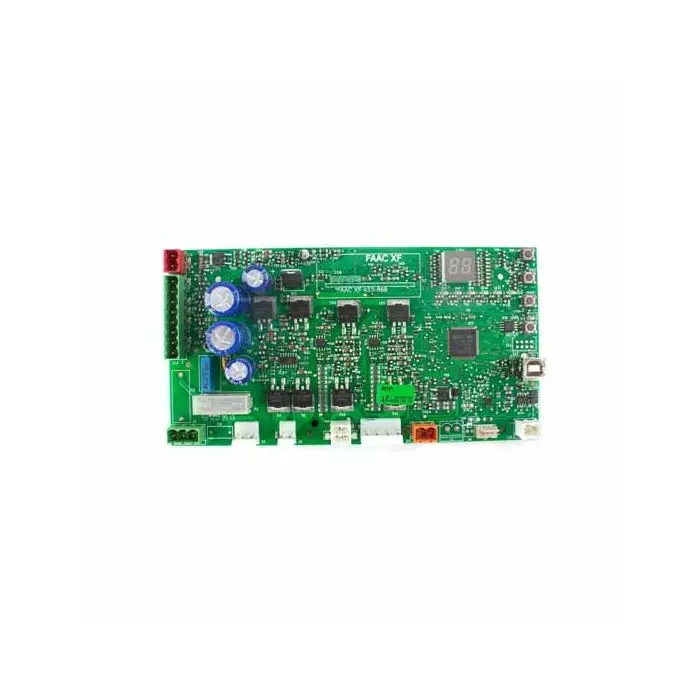

E721 control board for C720 and C721 low-voltage gearmotor 24Vdc FAAC 63002485

Name: E721 control board for C720 and C721 low-voltage gearmotor 24Vdc FAAC 63002485
Brand: FAAC
SKU: 63002485
Price: 189.08 EUR
Availability: InStock

In stock

SKU: 63002485

Are you a Reseller? Register Here

Description

E721 control board for C720 and C721 low-voltage gearmotor 24Vdc FAAC 63002485

Data sheet

Power supply voltage: 230 Vac (+6% -10%) 50 Hz
Absorbed power: 10 W
Max. motor load: 10 A
Accessory power supply: 24 Vdc
Accessory max. current: 500 mA
Operating ambient temperature: -20°C to +55°C
Protection fuses: F1= TIA-250V~
Function logics: Automatic (A)/Automatic (A1)/Semi-automitic (E)/Automatic Timer (At)/Automatic with reverse Pause(SA)/ Parking automatic (AP)/Dead man (C)/Automatic safety (S)/”Stepped” safety (SP)/”Stepped” semi-automatic (EP)/Semi-automatic (B)/Mixed logic (BC)
Work time: Programmable (from 0 to 9 min and 50 sec)
Pause time: Programmable (from 0 to 9 min and 50 sec)
Motor power: Programmable over 50 levels
Inputs: BUS 2 Easy 5 inputs (open A, open B/close, stop, safety device at opening, safety device at closure) Stop or Open B/Close can be programmed as safety edge inputs.
Outputs: 1 programmable output 24V, 100mA (fail-safe, alarm, indicator light, courtesy light, activated with 2-channel radio), fl ashing lamp
Rapid connectors: OMNIDEC (XF 433 or XF 868)
Programming: 3 keys (+, -, F) and LCD display
Programmable functions: Logic, Pause time A, Pause time B, Thrust, Opening speed, Closing speed, Deceleration spaces, Pre-fl ashing, Opening safety devices logic, Closing safety devices logic, Obstacle sensitivity, Partial opening, cycle counter, master & slave function
Speed: Programmable over 10 levels
