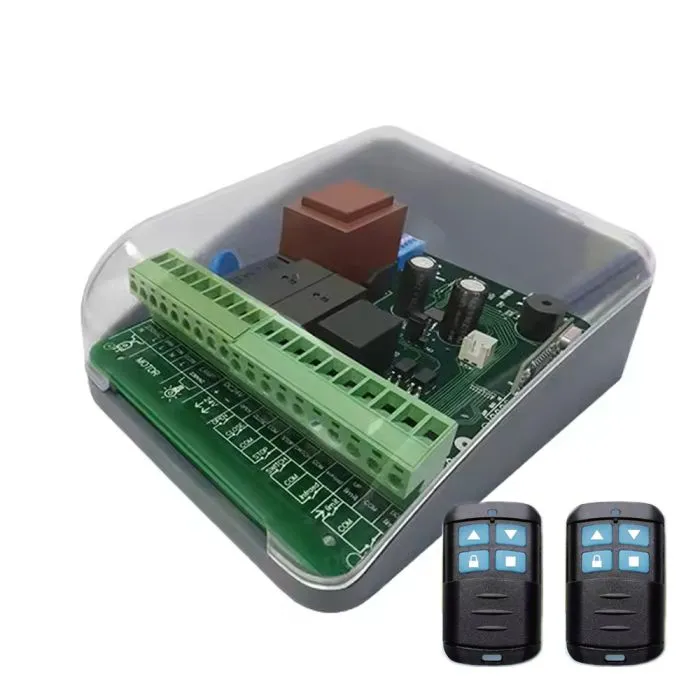

ETTROGATE universal receiver control board 433Mhz DC 12-24V 2CH relay Garage door Gate opener roller shutter with 2 remote controls ready to use
Out of stock
|
SKU: ET6006
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card.
Call us on +39 081.759.88.86 from Monday to Friday, from 9.00 to 13.00 and from 15.30 to 18.00 or
The ETTROGATE ET6006 is a universal 2-channel receiver with 433 MHz radio module , ideal for controlling gate openers, garage doors, shutters and tubular motors .433 MHz fixed code remote controls , supports up to 100 remote controls and can be powered by both 12–24V DC and 230V AC . Includes 2 pre-paired 4-button remote controls .
Among its main features we find:
1-button (loop) or 3-button (open-stop-close) operation
Programmable automatic closing
Input for NC/NO photocells (24V DC)
Support for limit switches, flashing lights and external selectors
Equipped with OPEN and CLOSE output relays , it allows installations on motorized actuators up to 1200W. The DIP-switch settings allow you to configure working modes, timing and motor inversion in a few seconds.
Package Contents
Characteristic Value Model ET6006 Brand ETTROGATE Device type Universal 2CH 433MHz RF Receiver Supported frequency 433.92MHz Diet DC 12–24V / AC 230V Relay outputs 2 channels (OPEN / CLOSE) Radio control compatibility ET6003, ET6001 - self-learning 433 (up to 100tx) Command mode 1 button (loop) or 3 buttons (open-stop-close) Sensor support Photocells (NC/NO), limit switches, flashing light External button inputs OPEN, CLOSE, STOP, LOCK Configurations Via DIP-switch Maximum supported power 1200W (motor) Operating temperature -20°C ~ +65°C Dimensions 170 × 145 × 57 mm (with box) Material ABS + electronic components Package Contents Control unit + 2 ET60461 radio controls already programmed
SKU Padre
ET6006
Ean
8053782743445
Shipping
Shipping 24/48H
Warranty
2 year warranty
Colore
Black
Remote controls Series
UNIVERSALI
Remote controls Frequency
433 Mhz
Channels number
2 ch
Carte de commande recepteur universel ETTROGATE 433Mhz DC 12-24V 2CH relais Porte de garage Ouvre-portail volet roulant avec 2 telecommandes pretes a l'emploi
Produit dangereux : logique de fin de course n'arrête pas le moteur en cas de coupure de fil ou de mauvais contact.
