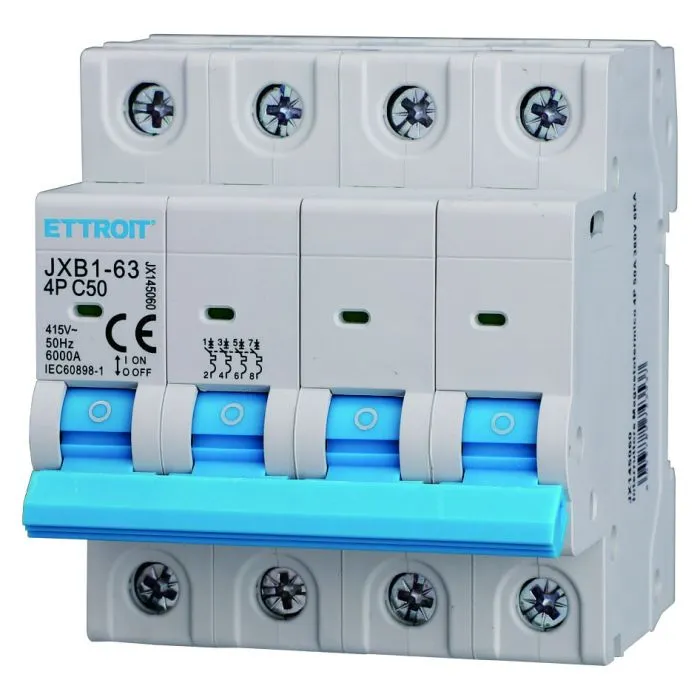

https://www.liberotech.com/ww/ettroit-4p-c50-50-a-6-ka-iec60898-1-jx145060-four-pole-miniature-circuit-breaker.htmlJX145060ETTROIT 4P C50 50 A 6 kA IEC60898-1 JX145060 Four-pole miniature circuit breaker<p>The ETTROIT JX145060 is a four-pole miniature circuit breaker designed to protect three-phase systems with neutral up to 50 A per pole. The C trip curve offers tolerance to starting peaks and rapid release in the event of a short circuit.</p><p> With breaking capacity up to 6 kA according to the IEC60898-1 standard, it combines thermal overload protection and magnetic short circuit protection. The centralized control lever allows manual connection and disconnection, while the self-extinguishing plastic casing guarantees IP20 protection.</p><ul><li> 4 poles, centralized ON/OFF control</li><li> Thermomagnetic protection against overloads and short circuits</li><li> Curve C – mean response</li><li> Breaking capacity 6 kA (IEC60898-1)</li><li> Rated voltage 415 V~ 50 Hz</li><li> 35mm DIN rail mounting</li><li> Number of DIN modules: 4 (70 mm)</li><li> Self-extinguishing plastic body, IP20</li></ul>https://www.liberotech.com/media/catalog/product/j/x/jx145060-2.jpg12instock121200ETTROIT000https://www.liberotech.com/media/catalog/product/j/x/jx145060-2.jpg/Electrical equipment/Electrical equipment/Magnetothermic switches17530895360002462100
