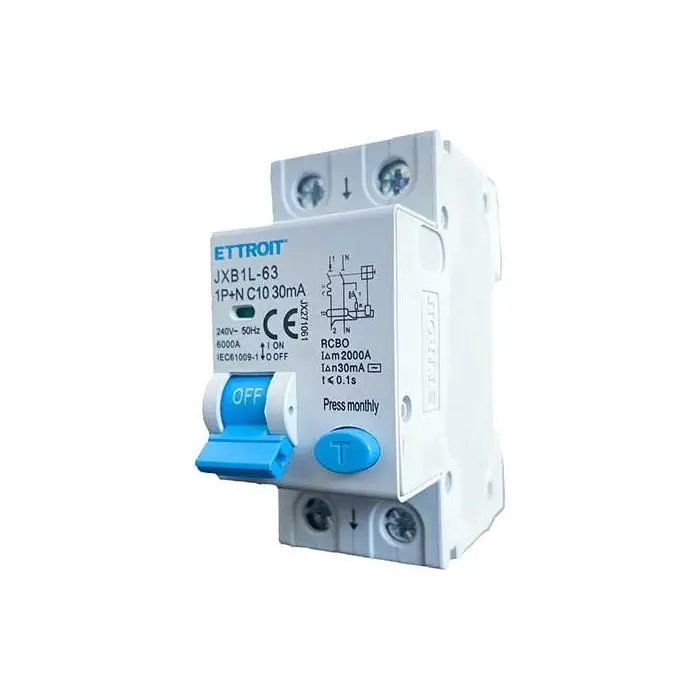

ETTROIT RCBO electromechanical 1P+N C10 10 A 30 mA 6 kA JX271061
Loading...
Shipping expected from
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card.
Call us on +39 081.759.88.86 from Monday to Friday, from 9.00 to 13.00 and from 15.30 to 18.00 or
ETTROIT RCBO electromechanical JX271061. Combines protection against overloads, short circuits and earth leakage currents.
Residual current technology: Electromechanical Poles: 1P+N Rated current: 10 A Rated residual operating current: 30 mA Supply / voltage: 220 V AC Modular width: 2 DIN modules Breaking capacity: 6 kA
Brand
ETTROIT
Product code
JX271061
Product type
RCBO
Rated current
10 A
Poles
1P+N
Modular width
2 DIN modules
Supply / voltage
220 V AC
Rated residual operating current
30 mA
Tripping curve
C
Breaking capacity
6 kA
Residual current technology
Electromechanical
SKU Padre
JX271061
Ean
8053782740499
Shipping
Shipping 24/48H
Warranty
5 years warranty
Colore
Gray
Tecnologia differenziale
Meccanico
Corrente nominale (A)
10A
Int. power Ka
6Ka
Differential Sensibility
30mA
Classe A
No
Curva di intervento magnetotermico
Curva C
Smart home
No
Module Type
Magnetotermico Differenziale
Number of modules
2
Voltage
AC:220Vac
Packaging
6
Waterproof
IP20
