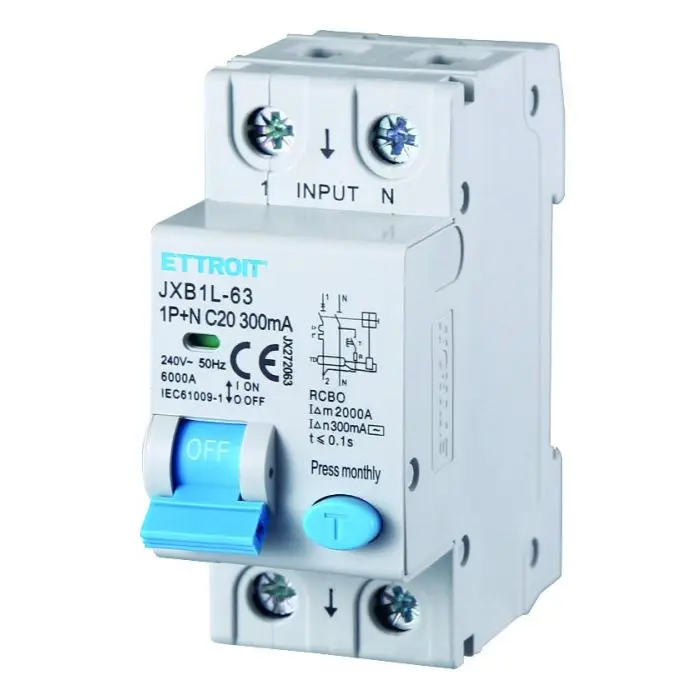

https://www.liberotech.com/ww/ettroit-differential-circuit-breaker-1p-n-20a-300ma-220v-6ka-jx272063.htmlJX272063ETTROIT Differential circuit breaker 1P+N 20A 300mA 220V 6KA - JX272063<ul><li><strong>Brand and Model</strong> : ETTROIT, JXB1L-63-1P+N-20A-6KA-300mA</li><li> <strong>Type of Switch</strong> : Differential magneto-thermal</li><li> <strong>Pole Configuration</strong> : 1P+N (1 Pole + Neutral)</li><li> <strong>Rated Current</strong> : 20A</li><li> <strong>Rated Breaking Power</strong> : 6000A (6kA)</li><li> <strong>Nominal Differential Intervention Current</strong> : 300mA (Sensitivity of the differential)</li><li> <strong>Nominal Sinusoidal Voltage</strong> : 240V</li><li> <strong>Occupation DIN modules</strong> : 2 modules</li></ul><h3> Protections Offered:</h3><ol><li> <strong>Magnetic</strong> : Protects against short circuits.</li><li> <strong>Thermal</strong> : Protects against overloads.</li><li> <strong>Differential</strong> : Protects against leakage currents towards earth.</li></ol><h3> Differential Sensitivity:</h3><ul><li> <strong>300mA</strong> : This sensitivity is higher than common 30mA switches. It is generally used in applications where protection from leakage currents is not as critical as in cases of electric shock, but it may be appropriate in environments with particularly variable loads or in systems that do not require such sensitive protection.</li></ul><h3> Applications:</h3><p> This type of switch is suitable for the protection of electrical systems that require protection from overloads, short circuits and earth leakage currents. The sensitivity of 300mA means that it may not offer as much protection from electric shock as a switch with lower sensitivity (e.g. 30mA), but may be sufficient in specific contexts.</p>https://www.liberotech.com/media/catalog/product/j/x/jx272063-01.jpg22.5instock22.522.500ETTROIT000https://www.liberotech.com/media/catalog/product/j/x/jx272063-01.jpg174717481749/Electrical equipment/Electrical equipment/Magnetothermic switches17193969020002149400
