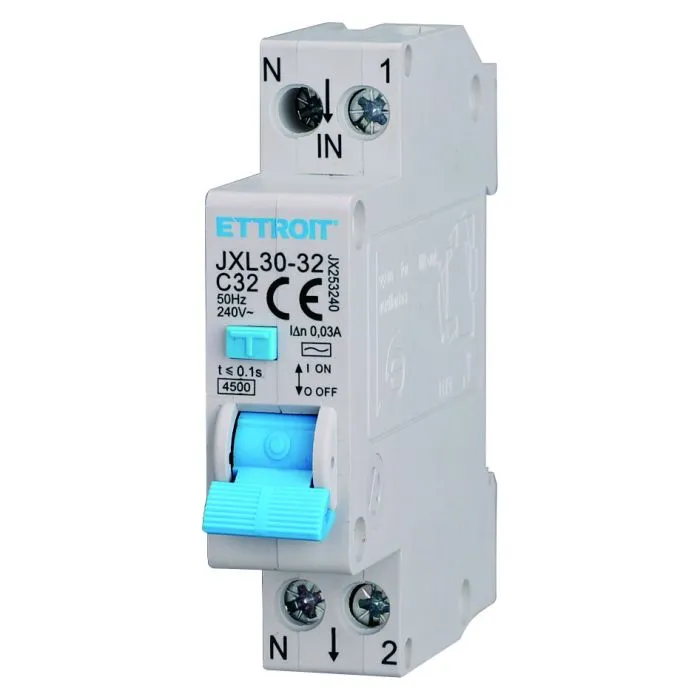

https://www.liberotech.com/ww/ettroit-differential-circuit-breaker-rcbo-1p-n-c32-32a-30ma-4-5-ka-jx253240.htmlJX253240ETTROIT Differential circuit breaker RCBO 1P+N C32 32A 30mA 4.5 kA JX253240<p>The ETTROIT JX253240 (JXL30-32 C32 series) differential circuit breaker integrates thermomagnetic protection (32 A, C curve) against overloads and short circuits with 30 mA differential protection against earth leakage. The intervention time ≤ 0.1 s guarantees immediate safety in the event of a fault. The device has a rated breaking capacity of 4.5 kA according to IEC 61009 and IEC 60947-2 standards.</p><p> Installable on a 35 mm DIN rail, it occupies 2 modules (35 mm). It has a two-color ON/OFF control lever and a self-extinguishing plastic body with IP20 front protection rating.</p><ul><li> 1 pole + neutral, centralized ON/OFF control</li><li> Curve C – 32 A thermal trip</li><li> Differential sensitivity 30 mA (AC type)</li><li> Response time ≤ 0.1 s</li><li> Breaking capacity 4.5 kA</li><li> Rated voltage 240 V~ 50 Hz</li><li> 35mm DIN rail mounting</li><li> Number of DIN modules: 2 (35 mm)</li><li> Front protection degree IP20</li></ul>https://www.liberotech.com/media/catalog/product/j/x/jx253240-2.jpg15instock151500ETTROIT000https://www.liberotech.com/media/catalog/product/j/x/jx253240-2.jpg/Electrical equipment/Electrical equipment/Magnetothermic switches17528481180002458100
