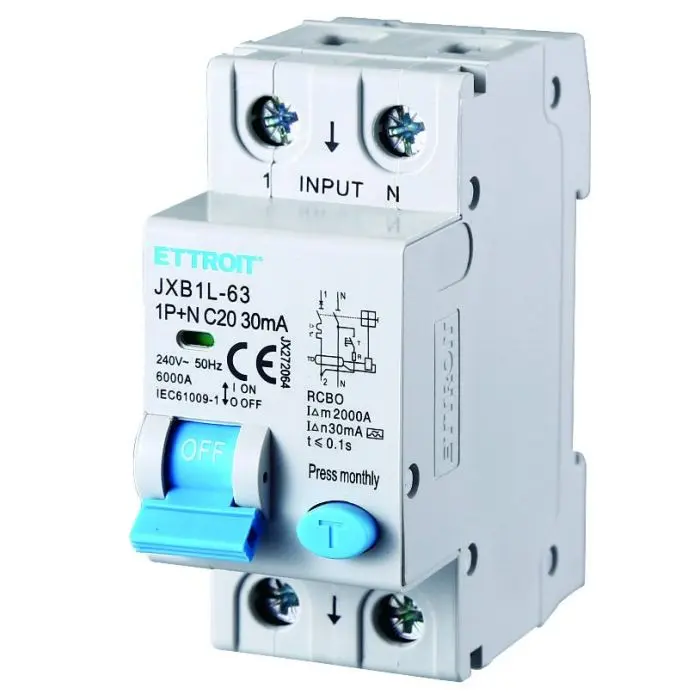

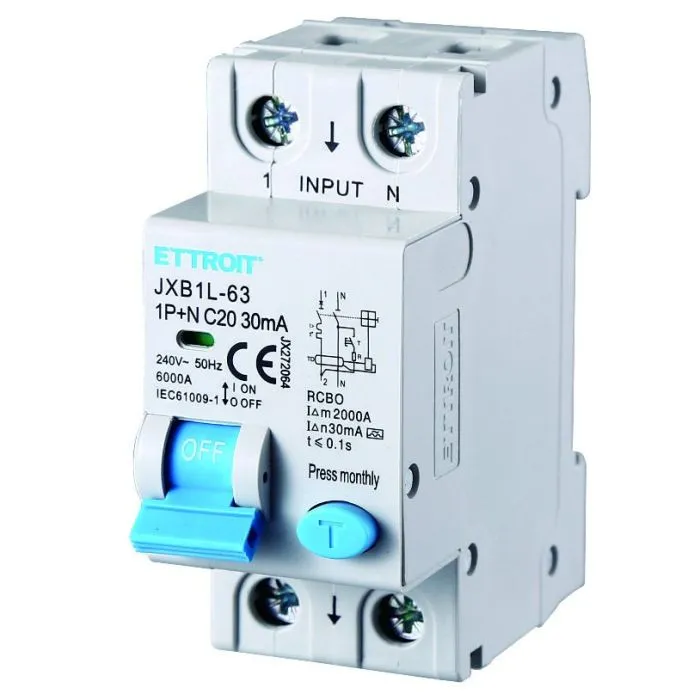

ETTROIT Differential Magnetic Thermal Switch 1P+N 20A 30mA 220V 6KA CLASS A - JX272064

Name: ETTROIT Differential Magnetic Thermal Switch 1P+N 20A 30mA 220V 6KA CLASS A - JX272064
Brand: ETTROIT
SKU: JX272064
Price: 30 EUR
Availability: InStock

In stock

SKU: JX272064

Are you a Reseller? Register Here

Description

Brand and Model : ETTROIT, JXB1L-63-1P+N-20A-6KA-30mA-A
Type of Switch : Type A differential thermal magnetic switch
Pole Configuration : 1P+N (1 Pole + Neutral)
Rated Current : 20A
Rated Breaking Power : 6000A (6kA)
Nominal Differential Intervention Current : 30mA (Sensitivity of the differential)
Nominal Sinusoidal Voltage : 240V
Occupation DIN modules : 2 modules

Protections Offered:

Magnetic : Protects against short circuits.
Thermal : Protects against overloads.
Differential : Protects against leakage currents towards earth.

Type A Details:

Type A : Detects both sinusoidal leakage currents and pulsating currents. This type of protection is particularly suitable for circuits with electronic loads or devices that can generate non-sinusoidal leakage currents.

Applications:

This switch is suitable for domestic and commercial applications where effective protection against overloads, short circuits and leakage currents is required. The sensitivity of 30mA offers robust protection to avoid risks of electric shock and improve the safety of the electrical system.

More Information

SKU Padre	JX272064
Ean	8053782740642
Shipping	Shipping 24/48H
Warranty	5 years warranty
Colore	Gray
Ampere	20A
Int. power Ka	6Ka
Differential Sensibility	30mA
Classe A	Yes
Curva Magnetotermico	Curva C
Smart home	No
Module Type	Magnetotermico Differenziale
Number of modules	2
Voltage	AC:200-240V
Packaging	6
