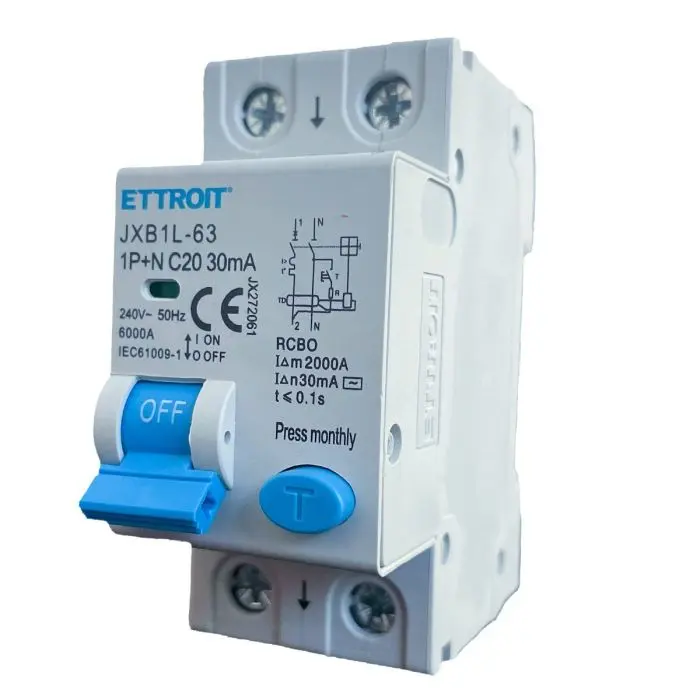

https://www.liberotech.com/ww/ettroit-differential-magnetic-thermal-switch-1p-n-20a-30ma-220v-6ka-jx272061.htmlJX272061ETTROIT Differential Magnetic Thermal Switch 1P+N 20A 30mA 220V 6KA JX272061<ul><li><strong>Brand and Model</strong> : ETTROIT, JXB1L-63-1P+N-20A-6KA-30mA</li><li> <strong>Type of Switch</strong> : Differential magneto-thermal</li><li> <strong>Pole Configuration</strong> : 1P+N (1 Pole + Neutral)</li><li> <strong>Rated Current</strong> : 20A</li><li> <strong>Rated Breaking Power</strong> : 6000A (6kA)</li><li> <strong>Nominal Differential Intervention Current</strong> : 30mA (Sensitivity of the differential)</li><li> <strong>Nominal Sinusoidal Voltage</strong> : 240V</li><li> <strong>Occupation DIN modules</strong> : 2 modules</li></ul><h3> Protections Offered:</h3><ol><li> <strong>Magnetic</strong> : Protects against short circuits.</li><li> <strong>Thermal</strong> : Protects against overloads.</li><li> <strong>Differential</strong> : Protects against leakage currents towards earth.</li></ol><h3> Differential Sensitivity:</h3><ul><li> <strong>30mA</strong> : This sensitivity offers advanced protection against leakage currents, helping to prevent electric shock and improve the safety of the electrical system. It is particularly suitable for residential and commercial environments where more sensitive and secure protection is required.</li></ul><h3> Applications:</h3><p> This switch is ideal for applications where adequate protection against overloads, short circuits and leakage currents is required. The 1P+N configuration is typical for single-phase circuits with neutral, while the sensitivity of 30mA helps to guarantee greater safety in situations where even small leakage currents can represent a risk.</p>https://www.liberotech.com/media/catalog/product/j/x/jx272061.jpg22.5instock22.522.500ETTROIT000https://www.liberotech.com/media/catalog/product/j/x/jx272061.jpg/Electrical equipment/Electrical equipment/Magnetothermic switches17193969020002149500
