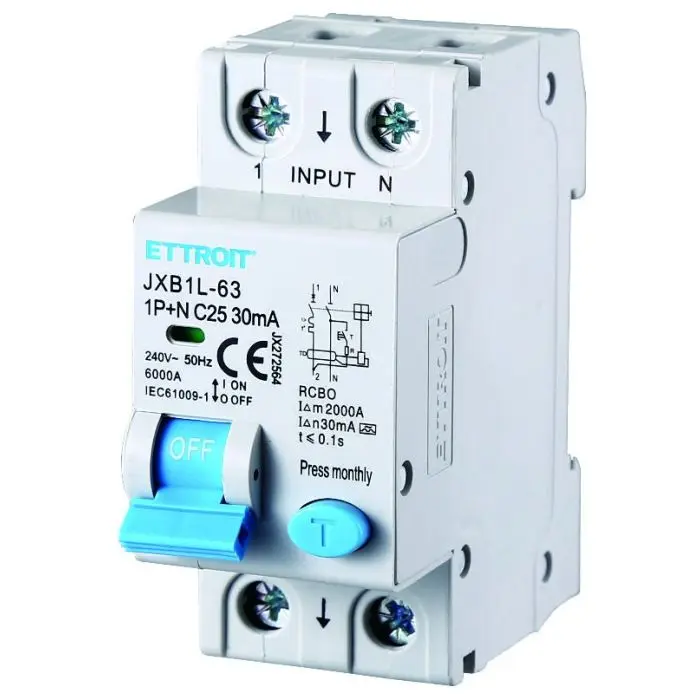

https://www.liberotech.com/ww/ettroit-differential-magnetic-thermal-switch-1p-n-25a-30ma-220v-6ka-class-a-jx272564.htmlJX272564ETTROIT Differential Magnetic Thermal Switch 1P+N 25A 30mA 220V 6KA CLASS A - JX272564<p>ETTROIT Differential Magnetic Thermal Switch 1P+N 25A 30mA 220V 6KA CLASS A - JX272564</p><ul><li> <strong>Type of Switch</strong> : Type A differential thermal magnetic switch</li><li> <strong>Protections Offered</strong> :<ul><li> <strong>Magnetic</strong> : Protects against short circuits.</li><li> <strong>Thermal</strong> : Protects against overloads.</li><li> <strong>Differential</strong> : Protects against leakage currents towards earth.</li></ul></li><li> <strong>Pole Configuration</strong> : 1P+N (1 Pole + Neutral)</li><li> <strong>Rated Current</strong> : 25A</li><li> <strong>Rated Breaking Power</strong> : 6000A (6kA)</li><li> <strong>Nominal Differential Intervention Current</strong> : 30mA (Sensitivity of the differential)</li><li> <strong>Nominal Sinusoidal Voltage</strong> : 240V</li><li> <strong>Occupation DIN modules</strong> : 2 modules</li></ul><h3> Type A Details:</h3><ul><li> <strong>Type A</strong> : The switch is designed to detect both sinusoidal leakage currents and pulsating currents. This type is particularly useful in systems with electronic devices or loads that generate non-sinusoidal leakage currents.</li></ul><h3> Applications:</h3><p> This switch is suitable for residential and commercial environments where it is necessary to protect the electrical circuit from overloads, short circuits and leakage currents. The sensitivity of 30mA offers adequate protection against electric shock and other risks related to earth leakages.</p>https://www.liberotech.com/media/catalog/product/j/x/jx272564-01.jpg30instock303000ETTROIT000https://www.liberotech.com/media/catalog/product/j/x/jx272564-01.jpg/Electrical equipment/Electrical equipment/Magnetothermic switches17193969030002150000
