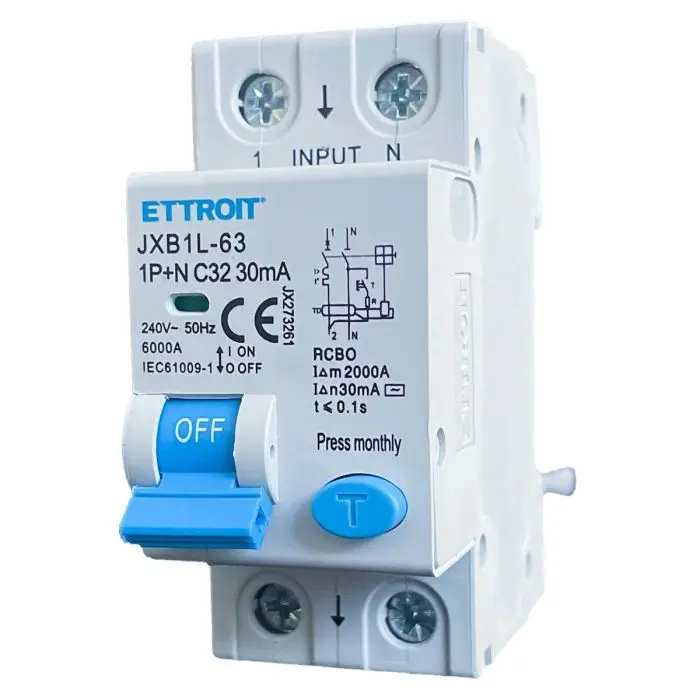

ETTROIT Differential Magnetic Thermal Switch 1P+N 32A 30mA 220V 6KA - JX273261

Name: ETTROIT Differential Magnetic Thermal Switch 1P+N 32A 30mA 220V 6KA - JX273261
Brand: ETTROIT
SKU: JX273261
Price: 22.5 EUR
Availability: InStock

In stock

SKU: JX273261

Are you a Reseller? Register Here

Description

Brand and Model : ETTROIT, JXB1L-63-1P+N-32A-6KA-30mA
Type of Switch : Differential magneto-thermal
Pole Configuration : 1P+N (1 Pole + Neutral)
Rated Current : 32A
Rated Breaking Power : 6000A (6kA)
Nominal Differential Intervention Current : 30mA (Sensitivity of the differential)
Nominal Sinusoidal Voltage : 240V
Occupation DIN modules : 2 modules

Protections Offered:

Magnetic : Protects against short circuits.
Thermal : Protects against overloads.
Differential : Protects against leakage currents towards earth.

Differential Sensitivity:

30mA : This sensitivity is particularly useful for protection against electric shock and to ensure greater safety in residential and commercial environments. The sensitivity of 30mA is often prescribed for applications where high protection against leakage currents is required.

Applications:

This switch is suitable for residential and commercial environments where effective protection against overloads, short circuits and leakage currents is required. The 30mA sensitivity offers robust protection, helping to prevent electric shock risks and increasing the overall safety of the electrical system.

More Information

SKU Padre	JX273261
Ean	8053782740536
Shipping	Shipping 24/48H
Warranty	5 years warranty
Colore	Gray
Ampere	32A
Int. power Ka	6Ka
Differential Sensibility	30mA
Classe A	No
Curva Magnetotermico	Curva C
Smart home	No
Module Type	Magnetotermico Differenziale
Number of modules	2
Voltage	AC:200-240V
Packaging	6
