ETTROIT Differential Magnetic Thermal Switch 3P+N 20A 300mA 380V-6KA JX262063
Loading...
Shipping expected from
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card.
Call us on +39 081.759.88.86 from Monday to Friday, from 9.00 to 13.00 and from 15.30 to 18.00 or

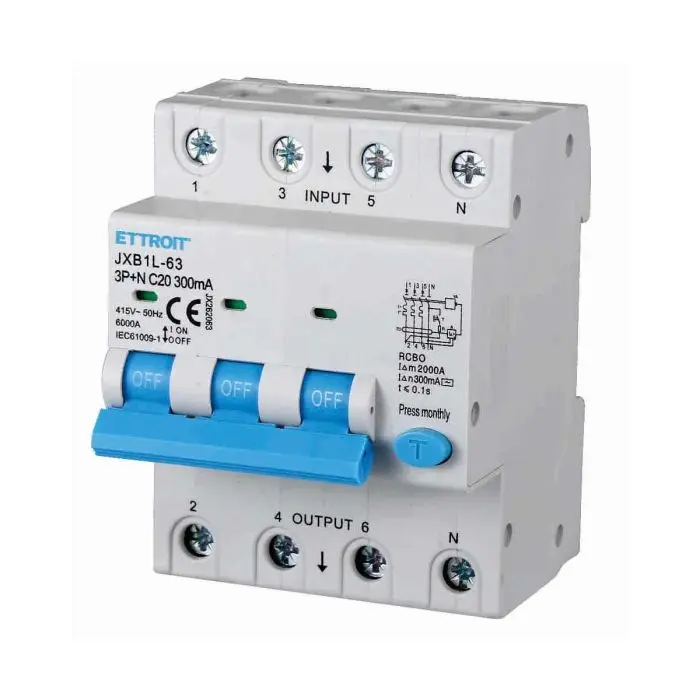

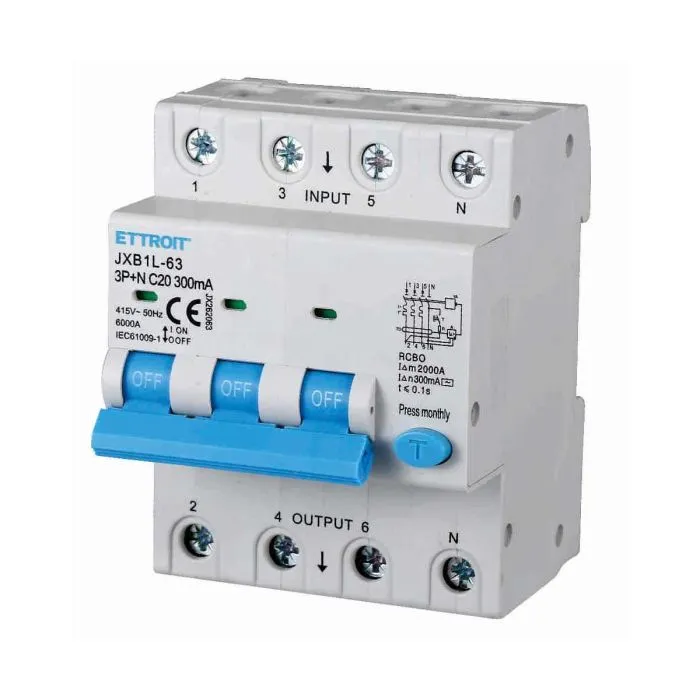

The residual current circuit breaker you described has the following specifications:
Types of Protections :
Magnetic : Protection against short circuits. Thermal : Protection against overloads. Differential : Protection against leakage currents. System Protection :
Overloads. Short circuits. Leakage currents. Technical features :
Type : 3P+N (three poles plus neutral). Rated Current : 20A. DIN modules : Occupies 4 DIN modules. Nominal Breaking Power : 6000A. Nominal Differential Intervention Current : 300mA. Nominal Sinusoidal Voltages : 415V. Brand : ETTROIT. Model : JXB1L-63-3P+N-C20-300mA-6000A.
SKU Padre
JX262063
Ean
8053782741489
Shipping
Shipping 24/48H
Warranty
5 years warranty
Colore
Gray
Ampere
20A
Int. power Ka
6Ka
Differential Sensibility
300mA
Classe A
No
Smart home
No
Module Type
Magnetotermico Differenziale
Number of modules
4
Voltage
AC:400Vac
Packaging
1
