ETTROIT RCBO electronic 3P+N C40 40 A 30 mA 6 kA JX264061
Loading...
Shipping expected from
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card.
Call us on +39 081.759.88.86 from Monday to Friday, from 9.00 to 13.00 and from 15.30 to 18.00 or

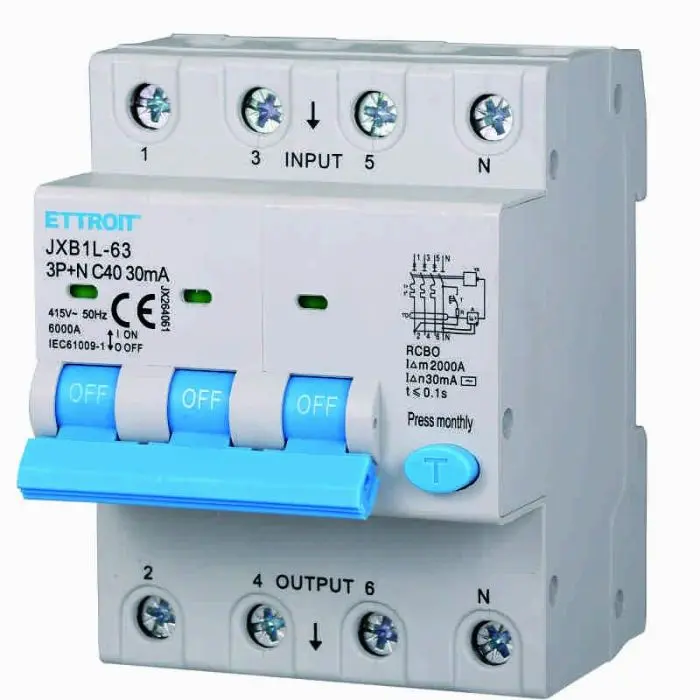

ETTROIT RCBO electronic JX264061. Combines protection against overloads, short circuits and earth leakage currents.
Residual current technology: Electronic Poles: 3P+N Rated current: 40 A Rated residual operating current: 30 mA Supply / voltage: 380 V AC Modular width: 4 DIN modules Breaking capacity: 6 kA
Brand
ETTROIT
Product code
JX264061
Product type
RCBO
Rated current
40 A
Poles
3P+N
Modular width
4 DIN modules
Supply / voltage
380 V AC
Rated residual operating current
30 mA
Tripping curve
C
Breaking capacity
6 kA
Residual current technology
Electronic
SKU Padre
JX264061
Ean
8053782740680
Shipping
Shipping 24/48H
Warranty
5 years warranty
Colore
Gray
Tecnologia differenziale
Elettronico
Corrente nominale (A)
40A
Int. power Ka
6Ka
Differential Sensibility
30mA
Classe A
No
Curva di intervento magnetotermico
Curva C
Smart home
No
Module Type
Magnetotermico Differenziale
Number of modules
4
Voltage
AC:380Vac
Packaging
1
Waterproof
IP20
