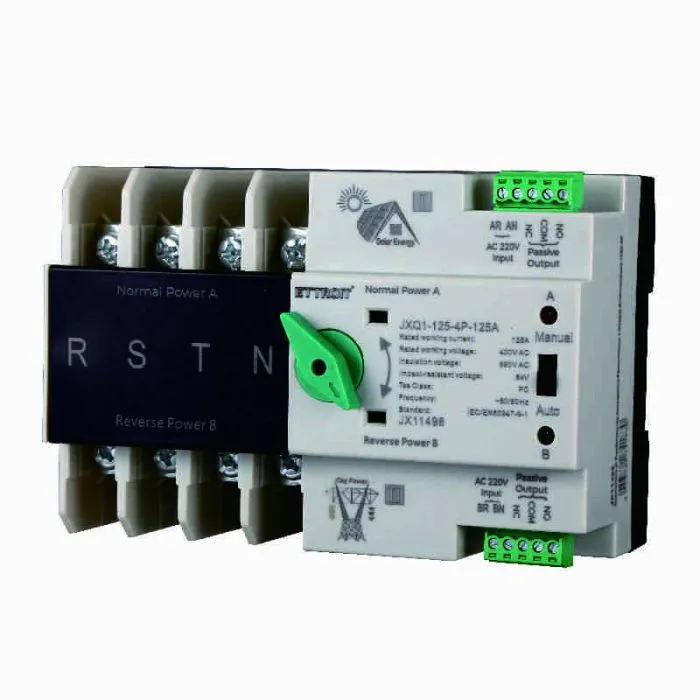

https://www.liberotech.com/ww/ettroit-jx11498-ats-dual-power-photovoltaic-automatic-transfer-switch-125a-4p.htmlJX11498ETTROIT JX11498 ATS Dual Power Photovoltaic Automatic Transfer Switch 125A 4P<p><strong>ETTROIT</strong> <strong>125A 4P Dual Power Photovoltaic Automatic Transfer Switch</strong> (model <strong>JX11498</strong> ) is a device designed for energy management in photovoltaic systems, enabling switching between two power sources. This switch can handle a nominal current of <strong>125A</strong> and a working voltage of <strong>400V AC</strong> , with a surge protection of <strong>8kV</strong> . It is particularly useful in photovoltaic systems that require automatic switching between the main power supply and the backup power supply (such as from a solar array).</p><h3> Main features:</h3><ul><li> <strong>Rated current</strong> : 125A</li><li> <strong>Working voltage</strong> : 400V AC</li><li> <strong>Insulation voltage</strong> : 690V AC</li><li> <strong>Shock resistant voltage</strong> : 8kV</li><li> <strong>Type classification</strong> : PC (hard plastic material)</li><li> <strong>Frequency</strong> : 50/60Hz</li><li> <strong>Short circuit current limit</strong> : 50kA</li><li> <strong>Power supply type</strong> : AC 220V</li><li> <strong>Automatic function</strong> : Automatic switching between power sources</li><li> <strong>Manual function</strong> : Manual switching available</li><li> <strong>Certification</strong> : IEC/EN 60947-6-1</li><li> <strong>Application</strong> : Photovoltaic systems and other applications where automatic control between energy sources is required</li></ul><h3> Advantages:</h3><ul><li> <strong>Reliability and safety</strong> : With surge protection and 50kA short circuit current limit, the switch ensures safe operation.</li><li> <strong>Auto-switching</strong> : Optimizes energy use by automatically switching from the grid to solar power when needed.</li><li> <strong>Ease of use</strong> : Manual switching is available in case of automatic malfunction.</li></ul>https://www.liberotech.com/media/catalog/product/j/x/jx11498-3.jpg60outofstock606000ETTROIT000https://www.liberotech.com/media/catalog/product/j/x/jx11498-3.jpg/Photovoltaic/Automatic photovoltaic switches/Electrical equipment/Photovoltaic17321970260002198400
