ETTROIT JX1638010 JXC1 AC Contactor 24V 50/60Hz Coil 3P 3 Poles Normally Open Ie 80A Ue 380V

Name: ETTROIT JX1638010 JXC1 AC Contactor 24V 50/60Hz Coil 3P 3 Poles Normally Open Ie 80A Ue 380V
Brand: ETTROIT
SKU: JX1638010
Price: 90 EUR
Availability: InStock

In stock

SKU: JX1638010

Are you a Reseller? Register Here

Description

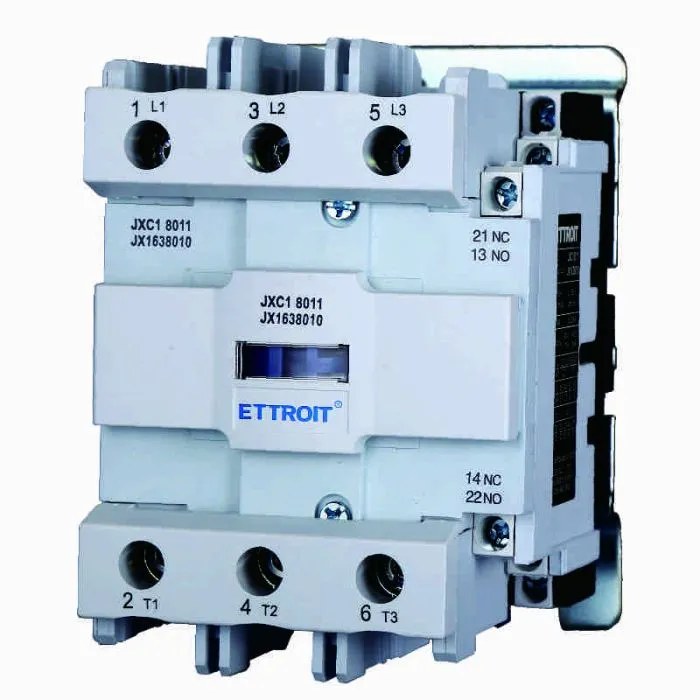

ETTROIT JX1638010 JXC1 AC Contactor 24V 50/60Hz Coil 3P 3 Poles Normally Open
The ETTROIT JX1638010 contactor is designed to ensure high performance in the management of industrial electrical loads. Ideal for applications where reliability and durability are required, this device uses a 24V AC coil compatible with frequencies of 50/60Hz. Thanks to its configuration with 3 normally open poles and a nominal capacity of 80A, it is perfect for controlling circuits with voltages up to 380V.

The robust structure ensures a long operating life, while the well-identified and easy-to-install terminals make the contactor practical and safe. It is equipped with a protection system against short circuits and overloads, respecting the IEC safety standards.

Applications:

Industrial automation systems.
Control of motors and resistive loads.
Management of electrical systems in commercial and industrial sectors.

Advantages:

Compactness and ease of assembly.
High reliability and operating life.
Compatibility with 380V circuits.

Data sheet

Characteristic Value

Model	JX1638010
Series	JXC1
Contactor Type	B.C
Coil Tension	24V AC
Frequency	50/60 Hz
Poly Configuration	3P (3 poles normally open)
Nominal Current (Ie)	80A
Nominal Voltage (Ue)	380V
Degree of Protection	IP20
Material	High strength polymers
Standard	IEC 60947-4-1
Working Temperature	-5°C ~ +40°C
Applications	Control circuits and industrial loads
Weight	1.2 kg

More Information

SKU Padre	JX1638010
Ean	8053782742820
Shipping	Shipping 24/48H
Warranty	5 years warranty
Colore	Gray
Ampere	80A
Classe A	No
Smart home	No
Module Type	Contattore
Number of modules	4
Voltage	24V
Packaging	4
