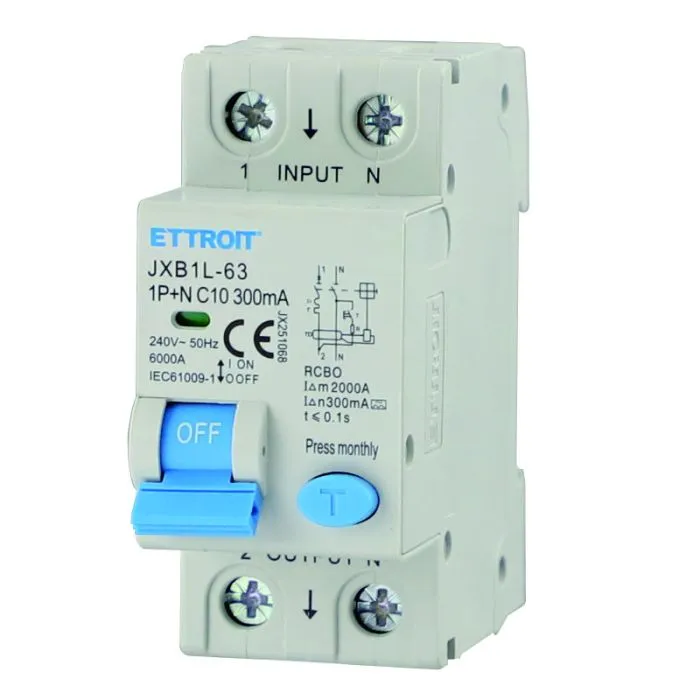

ETTROIT JX251068 Differential Circuit Breaker 1P+N 10A 300mA 220V-6KA CLASS A

Name: ETTROIT JX251068 Differential Circuit Breaker 1P+N 10A 300mA 220V-6KA CLASS A
Brand: ETTROIT
SKU: JX251068
Price: 30 EUR
Availability: InStock

In stock

SKU: JX251068

Are you a Reseller? Register Here

Description

The ETTROIT JX251068 is a 1P+N single-phase differential circuit breaker designed to provide optimum protection against overloads, short circuits and earth leakage currents. With a rated current of 10A, a differential sensitivity of 300mA and a breaking capacity of 6kA, this device represents a reliable solution for residential and commercial applications.

The Class A certification makes it particularly suitable for detecting alternating and pulsating differential currents, ensuring a high level of safety. Thanks to its compact design and compatibility with DIN rail installations, it is ideal for small spaces.

Complete Protection: Prevents overloads, short circuits and earth leakage.
Class A: Ensures the detection of alternating and pulsating differential currents.
Compact and Versatile: Only takes up 1 DIN module, perfect for electrical panels with limited space.
Safety Guaranteed: Complies with international standards IEC/EN 61009-1.
Reliability: High breaking capacity, up to 6kA.

Data sheet

Characteristic Specifications

Model Code	JX251068
Type	Differential Magnetothermic
Number of Poles	1P+N
Nominal Voltage (Ue)	220V
Nominal Current (Ie)	10A
Differential Sensitivity (I∆n)	300mA
Interrupting Power (Icn)	6kA
Class	Class A
Compliance Standards	IEC/EN 61009-1
Intervention Curves	C
Nominal Frequency	50Hz
Installation	DIN rail (1 module)
Applications	Residential, commercial

More Information

SKU Padre	JX251068
Ean	8053782742035
Shipping	Shipping 24/48H
Warranty	5 years warranty
Colore	Gray
Ampere	10A
Int. power Ka	6Ka
Differential Sensibility	300mA
Classe A	Yes
Curva Magnetotermico	Curva C
Smart home	No
Module Type	Magnetotermico Differenziale
Number of modules	2
Voltage	AC:200-240V
Packaging	6
