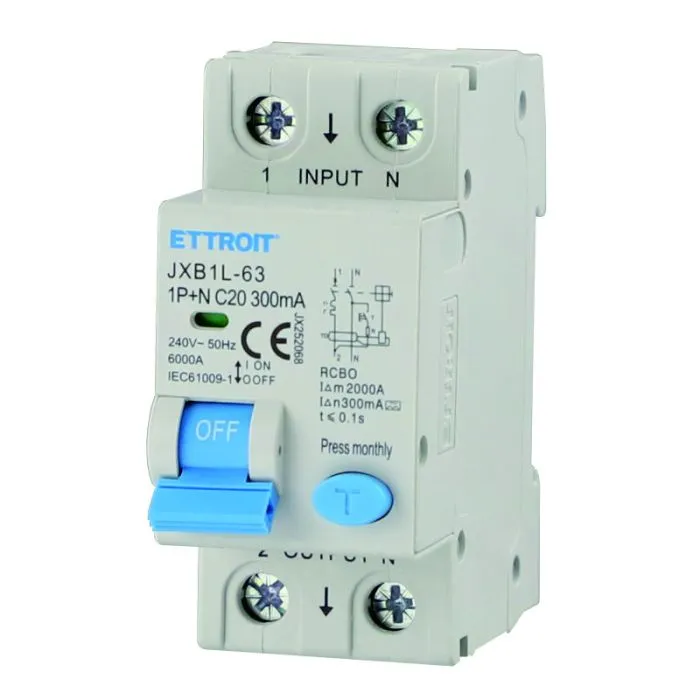

ETTROIT JX252068 Differential Circuit Breaker 1P+N 20A 300mA 220V-6KA CLASS A

Name: ETTROIT JX252068 Differential Circuit Breaker 1P+N 20A 300mA 220V-6KA CLASS A
Brand: ETTROIT
SKU: JX252068
Price: 30 EUR
Availability: InStock

In stock

SKU: JX252068

Are you a Reseller? Register Here

Description

The ETTROIT JX252068 is a 1P+N differential circuit breaker designed to provide effective protection against overloads, short circuits and earth leakage currents. With a rated current of 20A, a differential sensitivity of 300mA and a breaking capacity of 6kA, this device is particularly suitable for residential and commercial applications requiring high reliability and safety.

The Class A certification ensures the ability to detect alternating and pulsating differential currents, making it ideal for the protection of people and electrical systems. The practical design, which occupies 2 DIN modules , makes it suitable for electrical panels with limited space.

Complete Protection: Protects against overloads, short circuits and earth leakage.
Class A: Sensitive to alternating and pulsating differential currents, increasing safety.
Compact and Versatile: Only takes up 2 DIN modules , ideal for electrical panels with limited space.
Reliable Certifications: Compliant with IEC/EN 61009-1 standards.
High Breaking Capacity: Supports up to 6kA.

Data sheet

Characteristic Specifications

Model Code	JX252068
Type	Differential Magnetothermic
Number of Poles	1P+N
Nominal Voltage (Ue)	220V
Nominal Current (Ie)	20A
Differential Sensitivity (I∆n)	300mA
Interrupting Power (Icn)	6kA
Class	Class A
Compliance Standards	IEC/EN 61009-1
Intervention Curves	C
Nominal Frequency	50Hz
Installation	DIN rail (2 modules)
Applications	Residential, commercial

More Information

SKU Padre	JX252068
Ean	8053782742059
Shipping	Shipping 24/48H
Warranty	5 years warranty
Colore	Gray
Ampere	20A
Int. power Ka	6Ka
Differential Sensibility	300mA
Classe A	Yes
Curva Magnetotermico	Curva C
Smart home	No
Module Type	Magnetotermico Differenziale
Number of modules	2
Voltage	AC:200-240V
Packaging	6
