ETTROIT Mechanical Quartz Timer 16A 250V AC 110–230V 45–60Hz - SUL181H

Name: ETTROIT Mechanical Quartz Timer 16A 250V AC 110–230V 45–60Hz - SUL181H
Brand: ETTROIT
SKU: SUL181H
Price: 22.5 EUR
Availability: InStock

In stock

SKU: SUL181H

Are you a Reseller? Register Here

Description

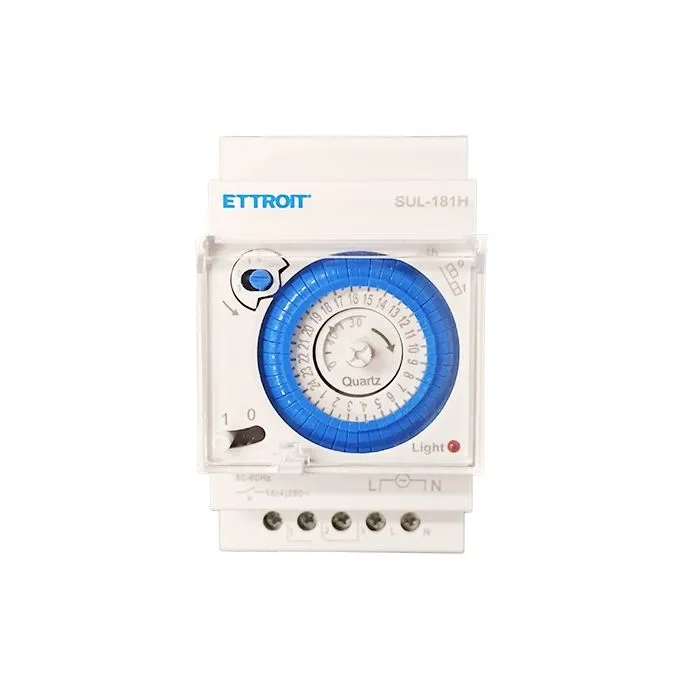

The ETTROIT SUL181H analog time switch is designed for the automatic control of electrical loads on a daily basis. Ideal for applications such as lighting, ventilation, pumps, and automation, it allows for precise management of on-off times.

The device uses a quartz movement to ensure high operating accuracy and reliable programming over time. The 24-hour segmented dial allows for simple and intuitive adjustment in minimum 15- or 30-minute increments.

Featuring DIN rail mounting, it integrates seamlessly into electrical panels. The manual selector allows operation in ON, AUTO, or permanent OFF modes, offering maximum flexibility of use.

Daily programming on a 24-hour cycle
Analog timer with high precision quartz movement
Installation on standard DIN rail
Manual switching ON / AUTO / OFF
Load capacity up to 16A
Suitable for lighting, pumps, ventilation and automation
Scheduling segments for precise time management
Compact structure for electrical panels

Reliable solution for timed energy control in domestic, commercial and industrial environments.

Data sheet

Brand	ETTROIT
SKU	SUL181H
Typology	Analog time switch
Programming	Daily (24 hours)
Number of channels	1
Minimum interval	15 – 30 minutes
Supply voltage	110 – 230 V AC
Frequency	50 – 60 Hz
Consumption	≈ 1 VA
Contact	Diverter (Wechsel)
Load capacity	16 A / 250 V AC
Inductive load	4 A / 250 V AC (cos φ = 0.6)
Minimum load	24V / 100mA
Lamp load	1100 W
Precision	±1 s/day
Power reserve	Up to 100 – 200 hours
Operating temperature	-20°C / +55°C
Degree of protection	IP20
Insulation class	Class II
Installation	DIN rail (EN 60715)
Usage	Indoor (dry environments)
Applications	Lighting, ventilation, pumps, automation

More Information

SKU Padre	SUL181H
Ean	8053782743780
Shipping	Shipping 24/48H
Warranty	2 year warranty
Smart home	No
Packaging	1
Colore	Gray
Module Type	Orologio-timer
