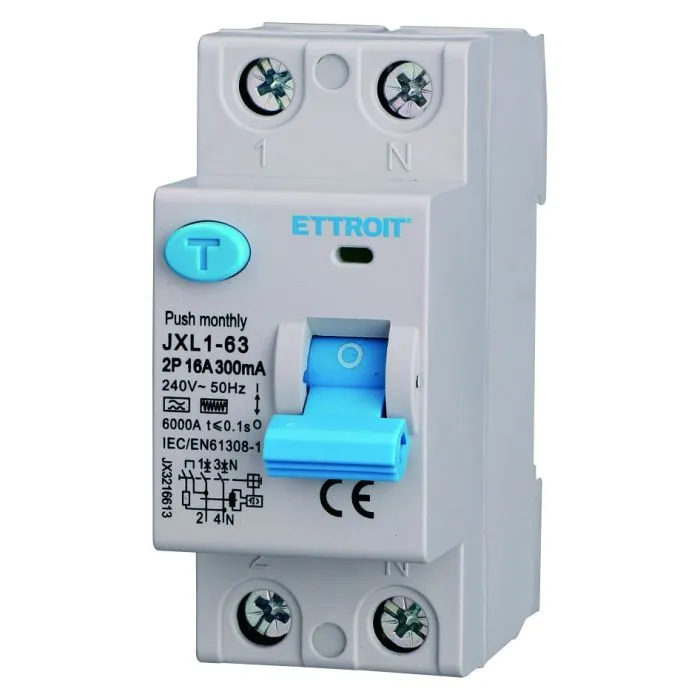

ETTROIT Pure Differential Circuit Breaker 2P 16A 300mA 220V-6KA Curve F - JX3216613

Name: ETTROIT Pure Differential Circuit Breaker 2P 16A 300mA 220V-6KA Curve F - JX3216613
Brand: ETTROIT
SKU: JX3216613
Price: 25.5 EUR
Availability: InStock

In stock

SKU: JX3216613

Are you a Reseller? Register Here

Description

The ETTROIT JX3216613 is a 16A two-pole (2P) residual current circuit breaker designed to protect electrical systems from earth leakage. With a residual current sensitivity of 300mA, it guarantees system protection and selectivity in specific applications.

The F trip curve ensures rapid and selective tripping, ideal for protecting electronic equipment and circuits with moderate inrush currents, offering greater precision than the classic B and C curves.

Compliant with IEC/EN61008-1, the circuit breaker has a breaking capacity of 6kA and tripping times of ≤0.1s. It features a front test button for periodic verification of proper operation. It occupies 2 DIN modules on a 35mm rail, compatible with standard electrical panels.

Pure differential protection against earth leakage
Rated current: 16A
Differential sensitivity: 300mA
Intervention curve: F (fast and selective, suitable for electronics)
Breaking capacity: 6kA
Rated voltage: 220V~ 50Hz
IEC/EN61008-1 standard
Front test button
DIN rail installation
Size: 2 DIN modules

Data sheet

Characteristic Value

Brand	ETTROIT
Product code	JX3216613
Typology	Pure differential switch
Poly	2P
Rated current	16A
Differential sensitivity	300mA
Intervention curve	F (fast, selective, ideal for electronics)
Interrupting power	6kA
Rated voltage	220V~ 50Hz
Regulations	IEC/EN61008-1
Intervention time	≤0.1s
Test button	Yes, frontal
Installation	35mm DIN rail
Occupied DIN modules	2
Front protection	IP20
Material	Self-extinguishing plastic

More Information

SKU Padre	JX3216613
Ean	8053782743667
Shipping	Shipping 24/48H
Warranty	5 years warranty
Colore	Gray
Ampere	16A
Int. power Ka	6Ka
Differential Sensibility	300mA
Classe A	No
Curva Magnetotermico	Curva F
Smart home	No
Module Type	Differenziale Puro salvavita
Number of modules	2
Voltage	AC:200-240V
Packaging	6
