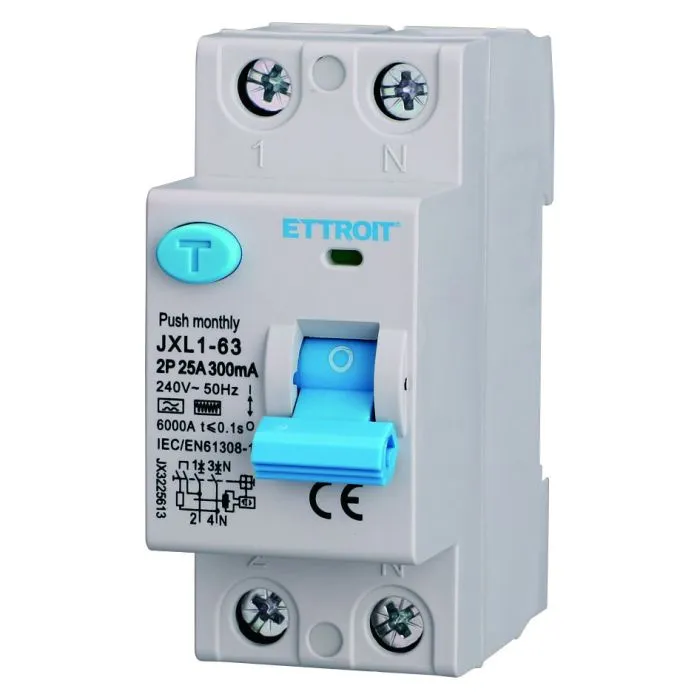

ETTROIT Pure Differential Circuit Breaker 2P 25A 300mA 220V-6KA Curve F - JX3225613

Name: ETTROIT Pure Differential Circuit Breaker 2P 25A 300mA 220V-6KA Curve F - JX3225613
Brand: ETTROIT
SKU: JX3225613
Price: 25.5 EUR
Availability: InStock

In stock

SKU: JX3225613

Are you a Reseller? Register Here

Description

The ETTROIT JX3225613 is a 25A pure bipolar (2P) residual current circuit breaker, designed to protect electrical systems from earth leakage. Its 300mA differential sensitivity makes it suitable for systems requiring selective protection, reducing the risk of unwanted interruptions.

The F tripping curve ensures rapid and selective tripping, ideal for protecting electronic equipment and circuits with moderate inrush currents. It is faster and more precise than the traditional B and C curves, increasing the level of protection for sensitive equipment.

Compliant with IEC/EN61008-1, it has a breaking capacity of 6kA and a tripping time of ≤0.1s. It features a front test button for periodic verification of correct operation. It occupies 2 DIN modules on a 35 mm rail, compatible with standard electrical panels.

Pure differential protection against earth leakage
Rated current: 25A
Differential sensitivity: 300mA
Intervention curve: F (fast and selective, suitable for electronics)
Breaking capacity: 6kA
Rated voltage: 220V~ 50Hz
IEC/EN61008-1 standard
Front test button
DIN rail installation
Size: 2 DIN modules

Data sheet

Characteristic Value

Brand	ETTROIT
Product code	JX3225613
Typology	Pure differential switch
Poly	2P
Rated current	25A
Differential sensitivity	300mA
Intervention curve	F (fast, selective, ideal for electronics)
Interrupting power	6kA
Rated voltage	220V~ 50Hz
Regulations	IEC/EN61008-1
Intervention time	≤0.1s
Test button	Yes, frontal
Installation	35mm DIN rail
Occupied DIN modules	2
Front protection	IP20
Material	Self-extinguishing plastic

More Information

SKU Padre	JX3225613
Ean	8053782743674
Shipping	Shipping 24/48H
Warranty	5 years warranty
Colore	Gray
Ampere	25A
Int. power Ka	6Ka
Differential Sensibility	300mA
Classe A	No
Curva Magnetotermico	Curva F
Smart home	No
Module Type	Differenziale Puro salvavita
Number of modules	2
Voltage	AC:200-240V
Packaging	6
