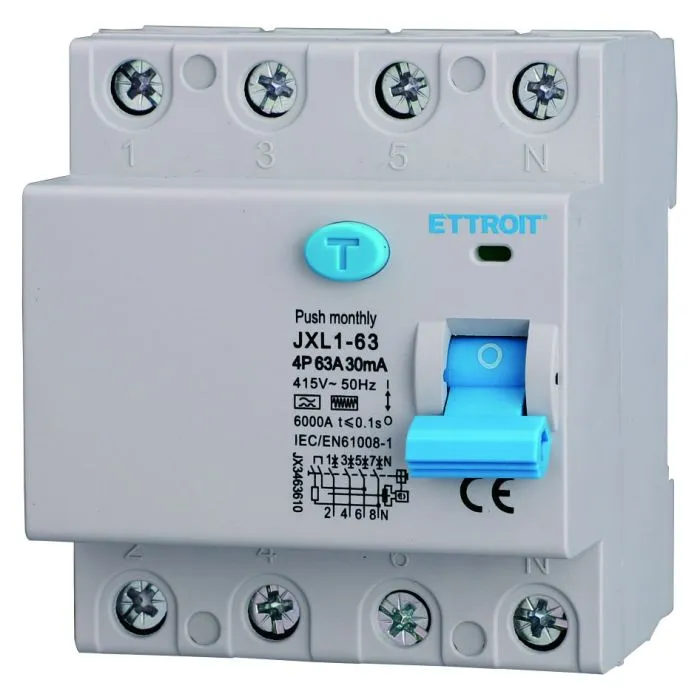

ETTROIT Pure Differential Circuit Breaker 4P 63A 30mA 380V-6KA Curve F - JX3463610
In stock
|
SKU: JX3463610
Loading...
Shipping expected from
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card.
Call us on +39 081.759.88.86 from Monday to Friday, from 9.00 to 13.00 and from 15.30 to 18.00 or
ETTROIT JX3463610 63A four-pole (4P – three-phase + neutral) differential circuit breaker, ideal for differential protection in power systems. Differential sensitivity 30mA.
Tripping curve F : rapid and selective tripping, recommended for protecting electronic equipment and circuits with moderate inrush currents. Compliant with IEC/EN61008-1, breaking capacity 6kA, tripping time ≤0.1s. Dimensions: 4 DIN modules.
Rated current: 63A Differential sensitivity: 30mA Intervention curve: F Poles: 4P (three-phase + neutral) Breaking capacity: 6kA Rated voltage: 380V~ 50Hz Installation: DIN rail, 4 modules Front test button
Characteristic Value Brand ETTROIT Product code JX3463610 Typology Pure differential switch Poly 4P (three-phase + neutral) Rated current 63A Differential sensitivity 30mA Intervention curve F Interrupting power 6kA Rated voltage 380V~ 50Hz Regulations IEC/EN61008-1 Intervention time ≤0.1s Test button Yes Installation 35mm DIN rail Occupied DIN modules 4 Front protection IP20
SKU Padre
JX3463610
Ean
8053782743735
Shipping
Shipping 24/48H
Warranty
5 years warranty
Colore
Gray
Ampere
63A
Int. power Ka
6Ka
Differential Sensibility
30mA
Classe A
No
Curva Magnetotermico
Curva F
Smart home
No
Module Type
Differenziale Puro salvavita
Number of modules
4
Voltage
AC:380Vac
Packaging
3
