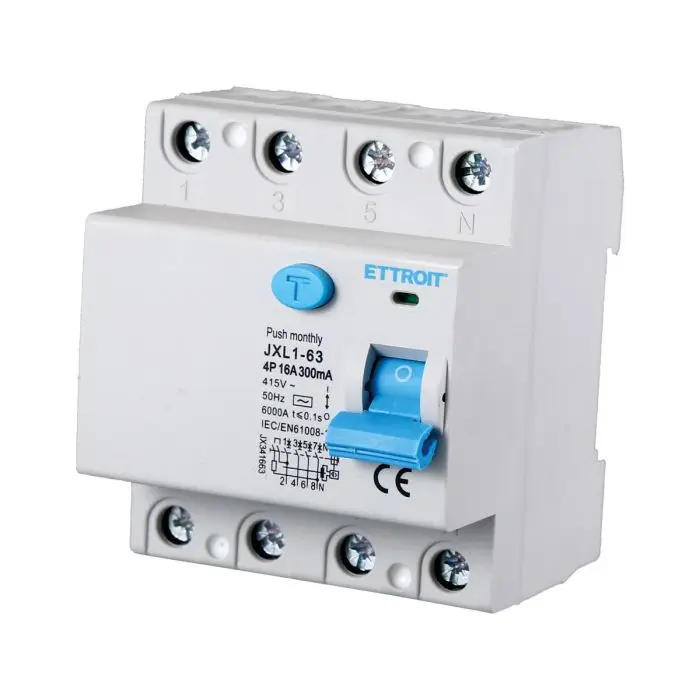

https://www.liberotech.com/ww/ettroit-pure-earth-leakage-circuit-breaker-4p-16a-300ma-380v-6ka-jx341663.htmlJX341663ETTROIT Pure earth leakage circuit breaker 4P 16A 300mA 380V 6KA - JX341663<ul><li><strong>Brand and Model</strong> : ETTROIT, JXL1-63-4P-16A-6KA-300mA</li><li> <strong>Type of Switch</strong> : Pure Differential (Residual Current Device)</li><li> <strong>Poles Configuration</strong> : 4P (4 Poles)</li><li> <strong>Rated Current</strong> : 16A</li><li> <strong>Rated Breaking Power</strong> : 6000A (6kA)</li><li> <strong>Nominal Differential Intervention Current</strong> : 300mA (Sensitivity of the differential)</li><li> <strong>Nominal Sinusoidal Voltage</strong> : 415V (Three Phase)</li><li> <strong>Occupancy DIN modules</strong> : 4 modules</li></ul><h3> Function and Protections</h3><ul><li><p> <strong>Differential Circuit Breaker</strong> : This device is designed to protect people from electric shock and the risks associated with earth leakage currents. It can detect leakage currents from both direct contact (touching live parts) and indirect contact (touching metal parts that become conductive due to faults).</p></li><li><p> <strong>300mA Sensitivity</strong> : 300mA sensitivity is useful for applications where extremely sensitive protection is not required as is the case with 30mA switches, but is still effective in protecting against higher leakage currents. This sensitivity is suitable for industrial and commercial environments.</p></li></ul><h3> Applications:</h3><ul><li> <strong>4P (4 Poles) configuration</strong> : Suitable for three-phase circuits with neutral, ideal for industrial and commercial systems that require protection on three-phase circuits.</li><li> <strong>16A Current Rating</strong> : Supports loads up to 16A, suitable for circuits with this rated current.</li><li> <strong>Nominal Voltage of 415V</strong> : Designed for three-phase 415V systems, common in industrial and commercial environments.</li><li> <strong>Breaking Power of 6000A</strong> : Provides adequate protection against short circuits, interrupting the circuit in the event of high energy faults.</li></ul>https://www.liberotech.com/media/catalog/product/j/x/jx341663-2.jpg22.5instock22.522.500ETTROIT000https://www.liberotech.com/media/catalog/product/j/x/jx341663-2.jpg/Electrical equipment/Electrical equipment/Magnetothermic switches17193965450002148800
