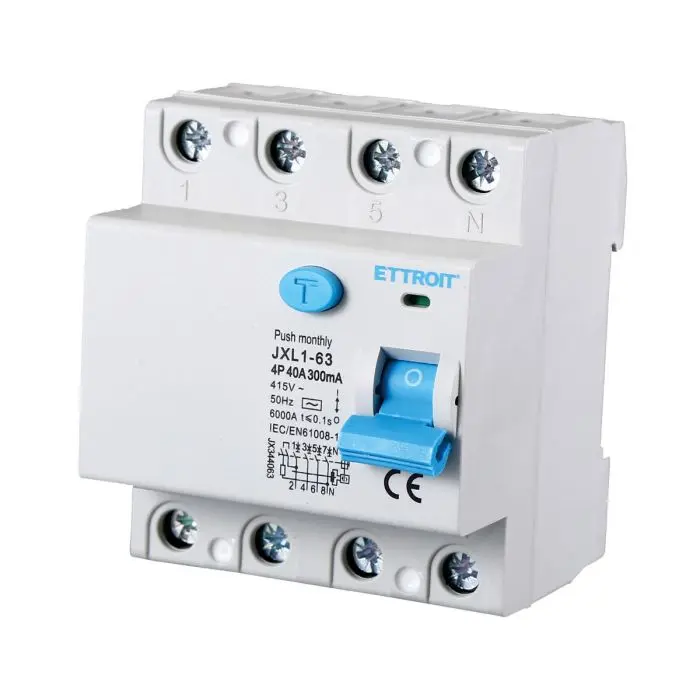

https://www.liberotech.com/ww/ettroit-pure-earth-leakage-circuit-breaker-4p-40a-300ma-380v-6ka-jx344063.htmlJX344063ETTROIT Pure earth leakage circuit breaker 4P 40A 300mA 380V-6KA - JX344063<ul><li><strong>Brand and Model</strong> : ETTROIT, JXL1-63-4P-40A-6KA-300mA</li><li> <strong>Type of Switch</strong> : Pure Differential (Residual Current Device)</li><li> <strong>Poles Configuration</strong> : 4P (4 Poles)</li><li> <strong>Rated Current</strong> : 40A</li><li> <strong>Rated Breaking Power</strong> : 6000A (6kA)</li><li> <strong>Nominal Differential Intervention Current</strong> : 300mA (Sensitivity of the differential)</li><li> <strong>Nominal Sinusoidal Voltage</strong> : 415V (Three Phase)</li><li> <strong>Occupation DIN modules</strong> : 4 modules</li></ul><h3> Function and Protections Offered:</h3><ul><li><p> <strong>Differential Circuit Breaker</strong> : This device is designed to protect people from dangerous electrical contacts by detecting earth leakage currents that can occur both through direct contact (touching live parts) and indirect contact (touching metal parts that become conductive due to faults) .</p></li><li><p> <strong>Sensitivity of 300mA</strong> : Provides adequate protection to prevent risks associated with earth leakage currents. 300mA sensitivity is often used in environments where protection as high as 30mA devices is not required, but is still important to protect against earth faults and electric shock.</p></li></ul><h3> Applications:</h3><ul><li> <strong>4P (4 Poles) configuration</strong> : Ideal for three-phase systems with neutral. Suitable for industrial and commercial environments where protection of three-phase circuits is necessary.</li><li> <strong>Rated Current of 40A</strong> : Suitable for circuits that do not exceed 40A continuous load.</li><li> <strong>Nominal Voltage of 415V</strong> : Suitable for three-phase 415V circuits, common in industrial and commercial systems.</li><li> <strong>Breaking Power of 6000A</strong> : Provides adequate protection against short circuits, interrupting the circuit in the event of high energy faults.</li></ul>https://www.liberotech.com/media/catalog/product/j/x/jx344063-2.jpg22.5instock22.522.500ETTROIT000https://www.liberotech.com/media/catalog/product/j/x/jx344063-2.jpg/Electrical equipment/Electrical equipment/Magnetothermic switches17193965460002149000
