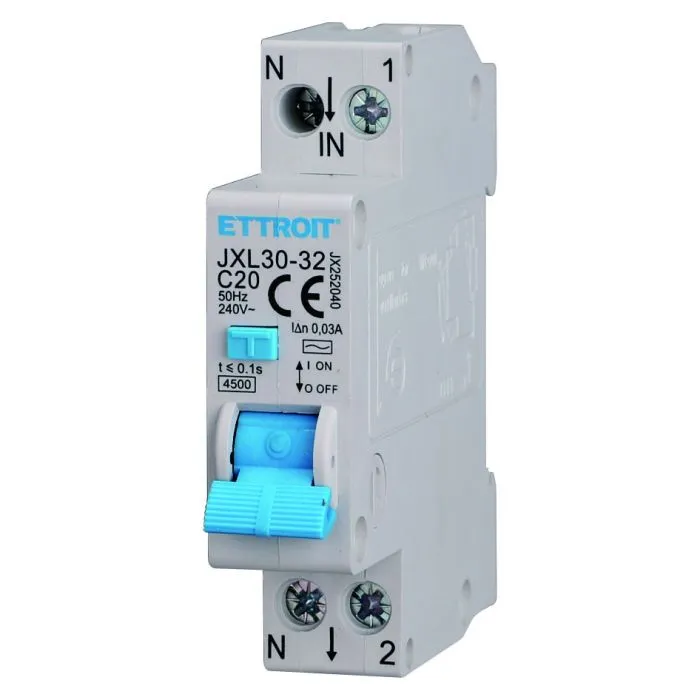

https://www.liberotech.com/ww/ettroit-rcbo-1p-n-c20-20a-30ma-4-5-ka-differential-circuit-breaker-jx252040.htmlJX252040ETTROIT RCBO 1P+N C20 20A 30mA 4.5 kA Differential Circuit Breaker JX252040<p>The ETTROIT JX252040 (JXL30-32 C20 series) differential circuit breaker combines thermomagnetic protection (20 A, C curve) against overloads and short circuits with differential protection (30 mA) against earth leakage. The tripping time is ≤ 0.1 s, ensuring rapid safety in the event of a fault. The rated breaking capacity is 4.5 kA, compliant with IEC 61009/IEC 60947-2.</p><p> Designed for installation on a 35 mm DIN rail, it occupies 2 modules (35 mm) and features a two-color ON/OFF lever. The self-extinguishing plastic casing ensures IP20 protection.</p><ul><li> 1 pole + neutral, centralized ON/OFF control</li><li> Curve C – 20 A thermomagnetic trip</li><li> Differential sensitivity 30 mA (AC type)</li><li> Response time ≤ 0.1 s</li><li> Breaking capacity 4.5 kA</li><li> Rated voltage 240 V~ 50 Hz</li><li> 35mm DIN rail mounting</li><li> Number of DIN modules: 2 (35 mm)</li><li> IP20 front protection</li></ul>https://www.liberotech.com/media/catalog/product/j/x/jx252040-2.jpg15instock151500ETTROIT000https://www.liberotech.com/media/catalog/product/j/x/jx252040-2.jpg/Electrical equipment/Electrical equipment/Magnetothermic switches17528481120002458000
