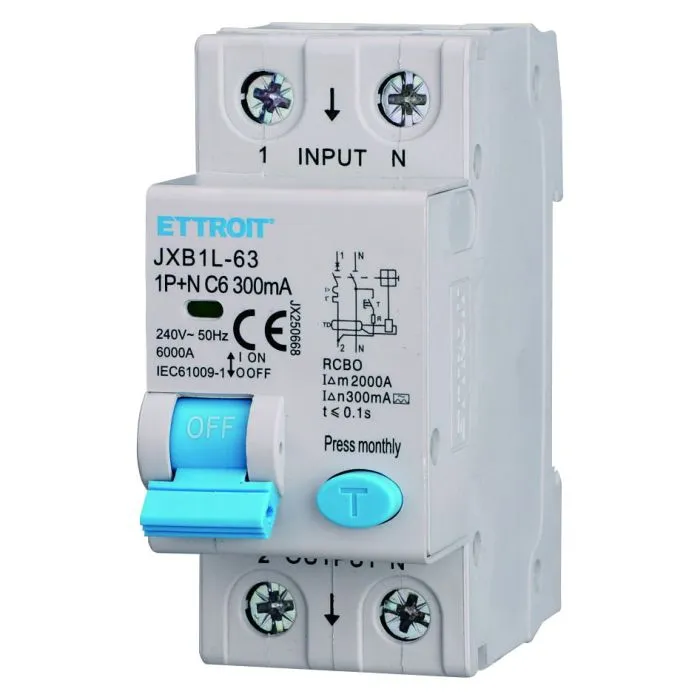

https://www.liberotech.com/ww/ettroit-rcbo-1p-n-c6-6a-300ma-class-a-6-ka-iec61009-1-jx250668.htmlJX250668ETTROIT RCBO 1P+N C6 6A 300mA Class A 6 kA IEC61009-1 JX250668<p>The ETTROIT JX250668 is a single-phase + neutral combined circuit breaker (RCBO) designed to protect against overloads, short circuits, and earth leakage. The 6 A C-curve handles start-up surges, while the 300 mA (Class A) differential sensitivity trips in ≤ 0.1 s to protect against fault currents.</p><p> With a breaking capacity of up to 6 kA according to IEC61009-1, the JX250668 integrates a front test button (“T”) for monthly operational verification. It mounts on a 35 mm DIN rail, occupying 2 modules, while the self-extinguishing plastic casing offers IP20 protection.</p><ul><li> 1 pole + neutral (1P+N), centralized ON/OFF control</li><li> Thermal magnetic protection: 6 A, curve C</li><li> Differential protection: 300 mA (Class A)</li><li> Response time ≤ 0.1 s</li><li> Breaking capacity: 6 kA</li><li> Rated voltage: 240 V~ 50 Hz</li><li> Standard: IEC 61009-1</li><li> Integrated test button “T”</li><li> 35 mm DIN rail mounting (2 DIN modules)</li><li> Front protection rating: IP20</li></ul>https://www.liberotech.com/media/catalog/product/j/x/jx250668-2.jpg30instock303000ETTROIT000https://www.liberotech.com/media/catalog/product/j/x/jx250668-2.jpg/Electrical equipment/Electrical equipment/Magnetothermic switches17530900080002464300
