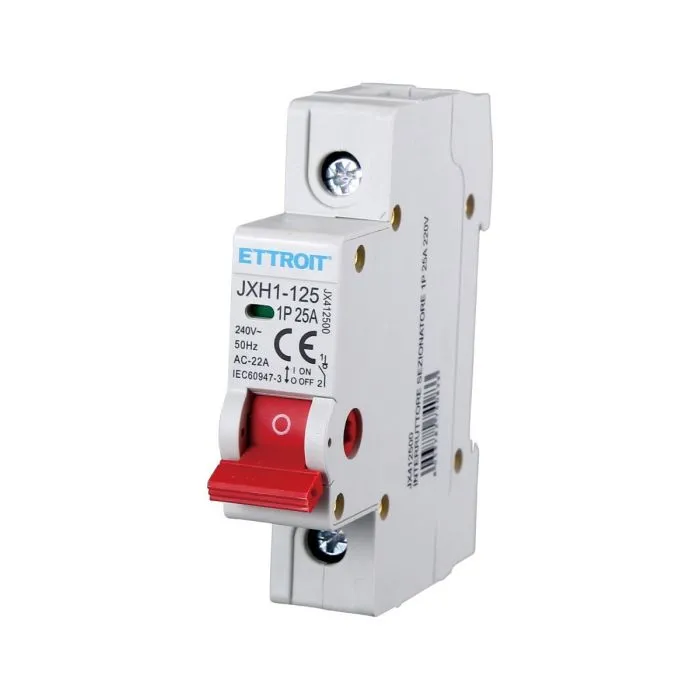

https://www.liberotech.com/ww/ettroit-switch-disconnector-1p-25a-240vac-din-rail-jx412500.htmlJX412500ETTROIT Switch Disconnector 1P 25A 240VAC DIN Rail JX412500<ul><li><strong>Brand and Model</strong> : ETTROIT, JXH1-125-1P-25A</li><li> <strong>Type of Device</strong> : Disconnector</li><li> <strong>Pole Configuration</strong> : 1P (1 Pole)</li><li> <strong>Rated Current</strong> : 25A</li><li> <strong>Nominal Voltage</strong> : 240V AC</li><li> <strong>Mounting</strong> : DIN rail</li><li> <strong>Function</strong> : Sectioning</li></ul><h3> Features and Function:</h3><ul><li><p> <strong>Disconnect switch</strong> : This device is designed to interrupt and isolate an electrical circuit. It serves to ensure a prescribed insulation distance, which is important for safety during maintenance operations or in the event of faults. Unlike an automatic switch, a disconnector does not have the function of protection against overloads or short circuits; its main purpose is to ensure that the circuit can be physically disconnected and isolated safely.</p></li><li><p> <strong>1P configuration</strong> : Indicates that the disconnector controls only one pole, typically used for single-phase circuits.</p></li><li><p> <strong>Rated Current of 25A</strong> : Indicates the maximum load that the disconnector can handle safely.</p></li><li><p> <strong>Nominal voltage of 240V AC</strong> : Suitable for circuits with voltages up to 240V in alternating current.</p></li><li><p> <strong>DIN Rail Mounting</strong> : Allows the disconnector to be mounted on a standard DIN rail, facilitating installation in electrical panels and panels.</p></li></ul>https://www.liberotech.com/media/catalog/product/j/x/jx412500-2.jpg3.75instock3.753.7500ETTROIT000https://www.liberotech.com/media/catalog/product/j/x/jx412500-2.jpg/Electrical equipment/Electrical equipment/Disconnect switches17193318540002131000
