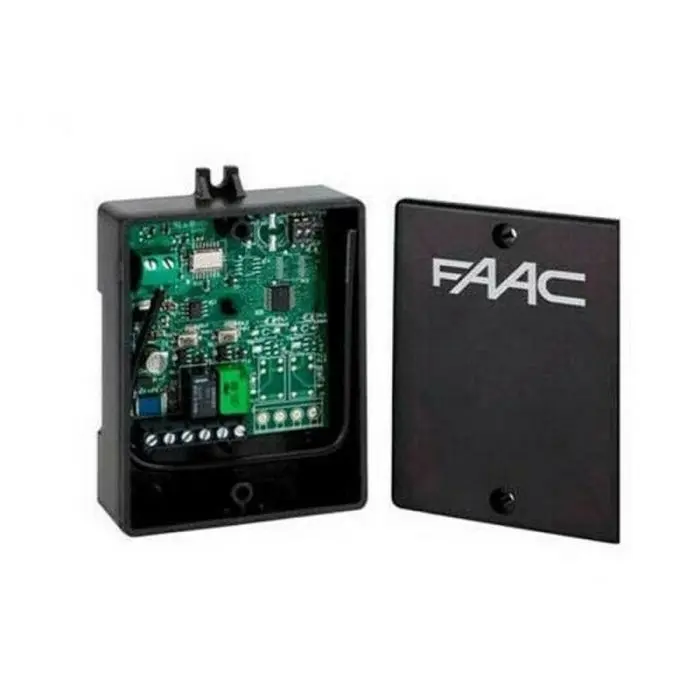

FAAC 2-channel receiver XR2 868 DS SLH external box 868Mhz dual-channel receiver 787754

Name: FAAC 2-channel receiver XR2 868 DS SLH external box 868Mhz dual-channel receiver 787754
Brand: FAAC
SKU: 787754
Price: 44.66 EUR
Availability: OutOfStock

Out of stock

SKU: 787754

Notify me when this product is in stock

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Are you a Reseller? Register Here

Description

Model: XR2 868 C
Number of channels: 2
Usage frequency: 868.35 MHz
Coding type: SLH LR technology (FAAC patent)
Coding Description:
- SLH (SELF LEARNING HOPPING code): The code varies each time the transmitter is used. An algorithm recognizes and validates the signal only of the transmitters encoded by the receiver. This makes cloning almost impossible. It is possible to replicate the coded transmitters, even remotely from the receiver, with the patented SELF LEARNING system (from transmitter to transmitter), simply by pressing the buttons in a specific sequence.
- LR (LONG RANGE): The transmitters are able to cover almost double the current distance thanks to a further FAAC patent on electronics. The SLH LONG RANGE transmitter, with each press of the control buttons, performs a real-time sensing of the surrounding environment (e.g.: position of the hand, presence of electrical disturbances, etc...) and automatically reconfigures the electronics, maximizing, for example each transmission, the radiated power. They are fully compatible with previous SLHs.

Data sheet

Supply voltage	12 ÷ 24 V~ – 12 ÷ 24 V
Reception frequency	433.92 ± 0.1 MHz
Current consumption	100 mA
Radio signal decoding	DS-SLH-RC
Radio code memory	250
Number of channels	2
Number of relay outputs (NO)	1 pulse (CH1) – 1 pulse/fixed (CH 2) (selectable)
Contact range	0.5 A / 12 ÷ 24V~ – 12 ÷ 24 V
Degree of protection	IP44
Operating ambient temperature	-20°C ÷ +55°C
Dimensions (WxDxH)	90 x 70 x 32.5 mm

More Information

SKU Padre	787754
Ean	8055195057089
Shipping	Shipping 24/48H
Warranty	2 year warranty
Colore	Black
Remote controls Series	SLH
Remote controls Frequency	868 Mhz
Channels number	2 ch
