FAAC PRATICO KIT new version complete set sliding motor 746 C hydraulic 600KG - 105940
Loading...
Shipping expected from
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card.
Call us on +39 081.759.88.86 from Monday to Friday, from 9.00 to 13.00 and from 15.30 to 18.00 or

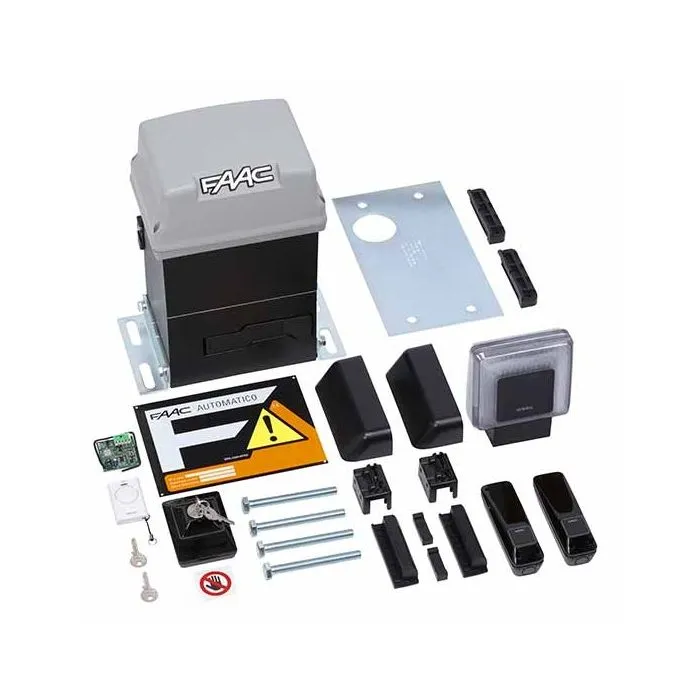

COMPLETE KIT PRACTICAL KIT - New version with 746C engine (replaces old model 10564944)
The FAAC 746 C is a gearmotor for sliding gates, designed to offer maximum performance in industrial, commercial and residential contexts. Thanks to the oil bath technology, the motor guarantees silent, reliable and long-lasting movement. It is ideal for automating heavy and large gates, maintaining high performance even with intense use frequencies.
Equipped with E781 board , the FAAC 746 C allows advanced programming via display and buttons and integrates the high-resolution magnetic encoder for precise movement control. The device is designed to withstand difficult environmental conditions thanks to the IP44 protection rating and operates in a wide temperature range from -20°C to +65°C .
Mains supply voltage 220-240V ~ 50/60 Hz
Max power 150W (746 C)
Max door weight 400 - 600 Kg (746 C)
Max. door length 40 - 50 m (
Max. door speed 9.6 - 12 m/min (746 C)
Amount Description
1
746 C Z16 motor with integrated electronic board and encoder
1
Foundation plate
1
XF433 channel receiver
1
2-channel remote control XT02 SLH-SL
1
230V XLED Flashing Light
1
XP30B Photocells
1
XK10 Key and Control Button
1
Lock with personalized key
1
"FAAC" sign
Characteristic 746 C Z16 Supply voltage 220 – 240 V ~ @50/60 Hz Maximum power 150W Pinion Z16 Module 4 Maximum push force 830 N Maximum door weight 600 kg Maximum door speed 9.6 m/min Maximum door width 40 m Braking distance 30mm Intended use Industrial/Commercial/Residential Frequency of use High traffic Degree of protection IP44 Operating temperature -20°C ÷ +65°C Ability to take off 12.5 μF Heat protection 120°C with automatic reset Gearmotor weight 16.2 kg Lubrication FAAC HP OIL Oil
SKU Padre
105940
Ean
8055195064506
Shipping
Shipping 24/48H
Warranty
2 year warranty
Type of Gate
Sliding gate
Gate leaf weigh
600-900 kg
Pinion type
modulo a 4
Sliding Gates Series
Pratico
Power supply
230-24V
