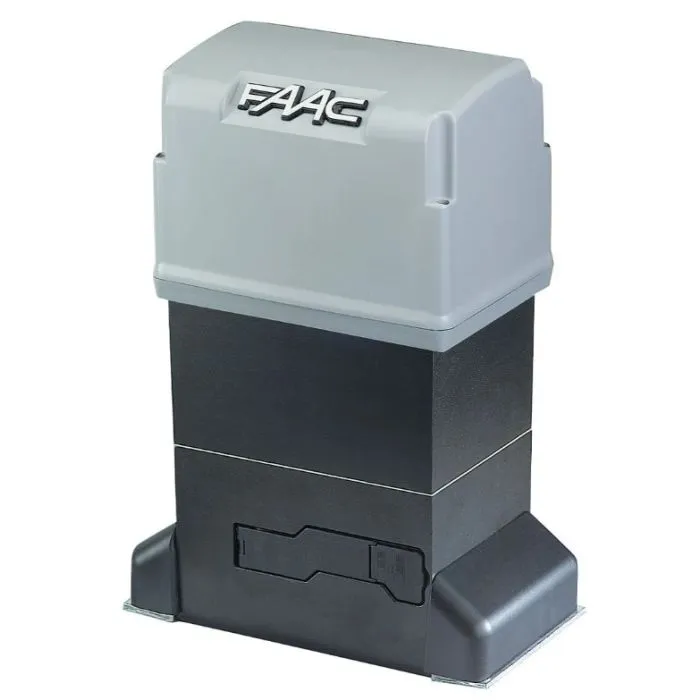

FAAC sliding gate motor 746 C Z20 oil bath gearmotor control board E781 109746
Out of stock
|
SKU: 109746
There are different forms of payment: 0 interest installments, bank transfer, PayPal, credit card.
Call us on +39 081.759.88.86 from Monday to Friday, from 9.00 to 13.00 and from 15.30 to 18.00 or
The FAAC 746 C Z20 is a 230V electromechanical gearmotor designed for the automation of sliding gates up to 600 kg. Equipped with the new integrated E781 electronic board, it offers advanced management with adjustable speed levels and two dedicated inputs for safety edges (NC or 8.2 KOhm). The oil bath technology guarantees silent movement and greater durability over time. Compatible with the Simply Connect system and FDS radio technology, it is ideal for residential and condominium applications.
Silent Operation : Oil bath technology ensures quiet operation and longer component life.
Advanced Safety : Double-disc clutch in oil bath and magnetic encoder for effective protection against crushing.
Flexible Installation : Height and laterally adjustable fixing system to adapt to different configurations.
Smart Compatibility : Integrates the E781 card with support for Simply Connect and FDS radio technology.
Ease of Programming : Electronic board programmable via display and buttons, protected by casing
Package Contents 1 x FAAC 746 C Z20 gearmotor with integrated E781 board
1 x Pinion Z20 module 4
1 x Manual release device with key
1 x Installation and use manual
Characteristic Detail Model 746 C Z20 (Cod. 109746) Supply voltage 220–240V ~ 50/60Hz Maximum power 150W Maximum door weight 600 kg Maximum door length 50 m Maximum door speed 12 m/min Pinion Z20 module 4 Limit switch Magnetic Encoders Magnetic encoder Degree of protection IP44 Operating temperature -20°C ÷ +65°C Unit weight 16.5 kg Dimensions (LxWxH) 275 x 191 x 336 mm Type of oil FAAC HP OIL Frequency of use 70%
SKU Padre
109746
Ean
8055195064438
Shipping
Shipping 24/48H
Warranty
2 year warranty
Type of Gate
Sliding gate
Gate leaf weigh
600-900 kg
Pinion type
modulo a 4
Power supply
230v
