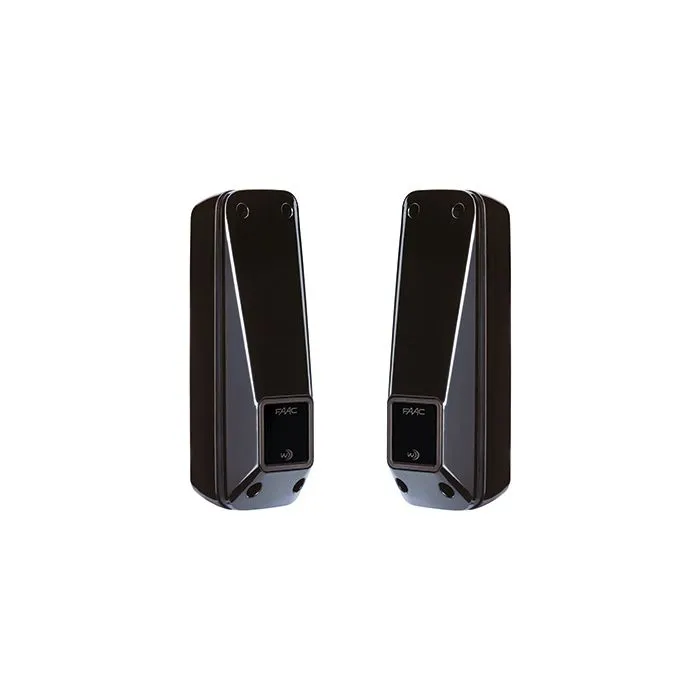

FAAC Pairs of adjustable photocells, model XP20W D with code 785104, offer an advanced solution for access control, with the following characteristics:
Operating mode :
The transmitting photocell (TX) can work wired or wirelessly on battery. In battery-powered wireless mode, no power cable is required, which allows it to be positioned even far from the control panel without the need for masonry work or cable routing.
The receiving photocell (RX) works with a 4-wire connection, like traditional photocells.
Automatic alignment : The photocells are equipped with automatic alignment modes, simplifying the installation process and ensuring optimal operation.
Adjustment angle : The photocells allow a mechanical adjustment angle from -90° to +90°, offering flexibility in their positioning.
Degree of protection : IP54, guaranteeing good resistance to atmospheric agents and adequate protection for external uses.
Operating temperature : -20°C to +55°C, allowing reliable operation even in adverse weather conditions.
Tx: 12 ÷ 24V~ – 12 ÷ 24 V or with battery (3 VcR2 – not included)
Maximum distance of photocells : 20 m
Installation type : Wall mounted
Degree of protection : IP54
Self-alignment angle : ± 7° (20 m), ± 13.5° (5 m)
Horizontal orientation angle : -90° to +90°
Dimensions (WxDxH) : 41.5 x 42.5 x 130 mm
Current consumption :
Rx: 30 mA
Tx: 40 mA with battery or 5 mA at 24V
Operating ambient temperature : -20°C ÷ +55°C
This model is designed to be installed on the wall and offers IP54 protection, making it suitable for outdoor use or in environments where a certain resistance to atmospheric agents is required. Its power supply can be managed via a range of voltages and offers a maximum distance of 20 meters for photocell detection.
